Products Description

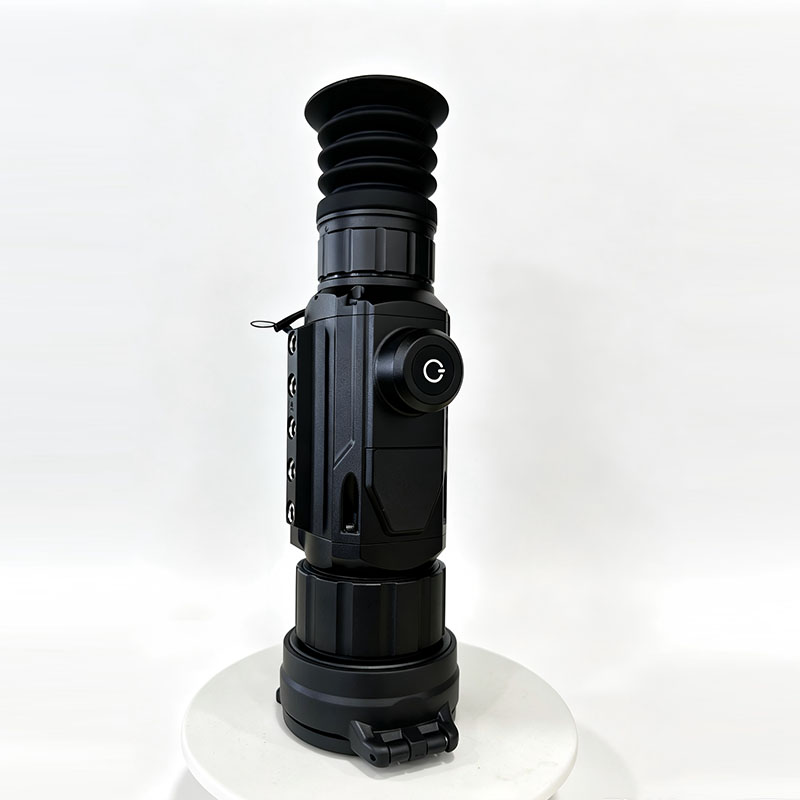

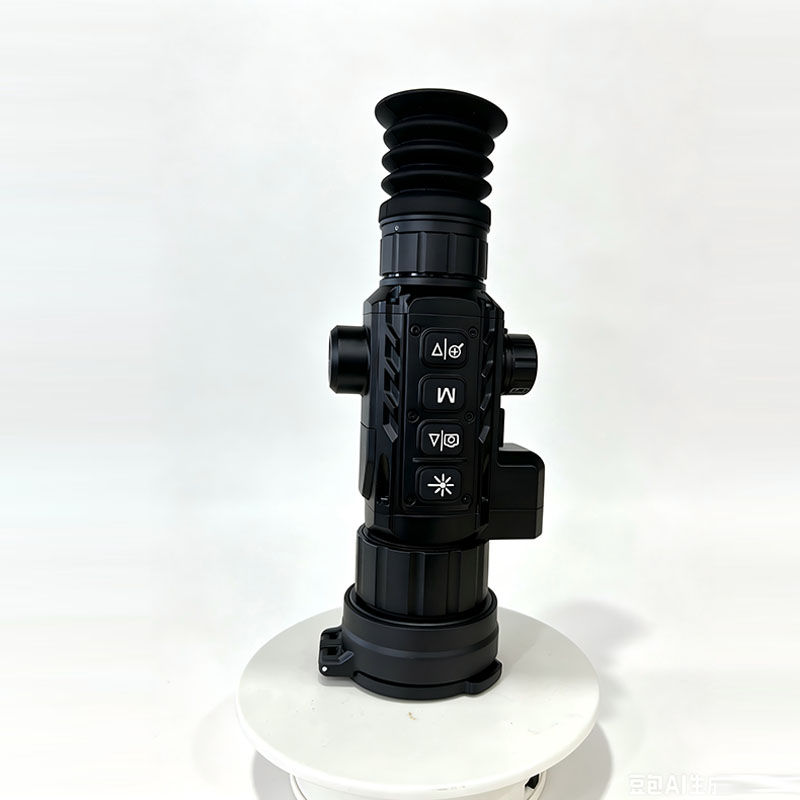

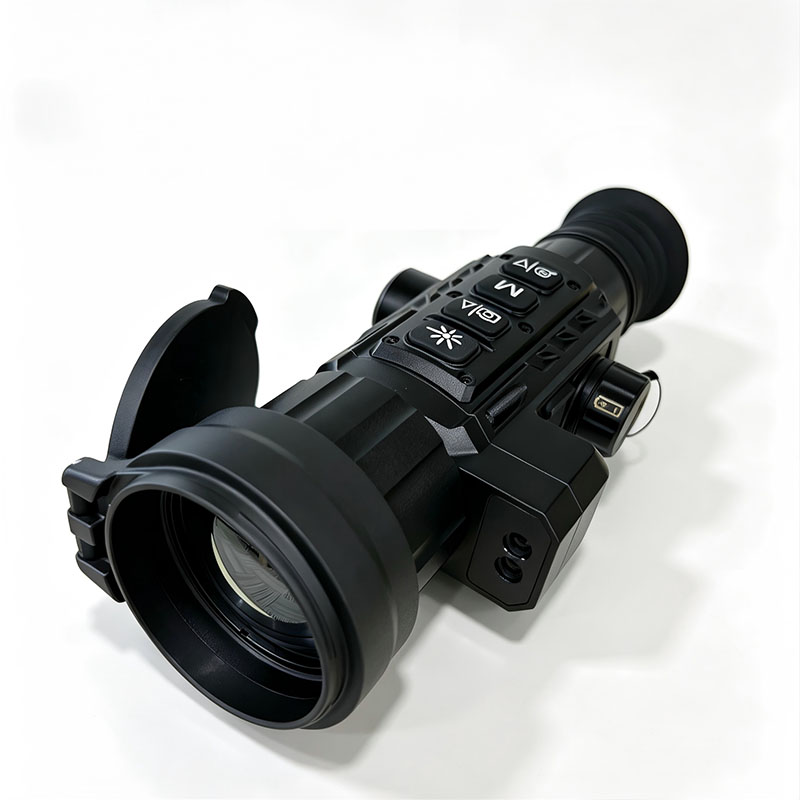

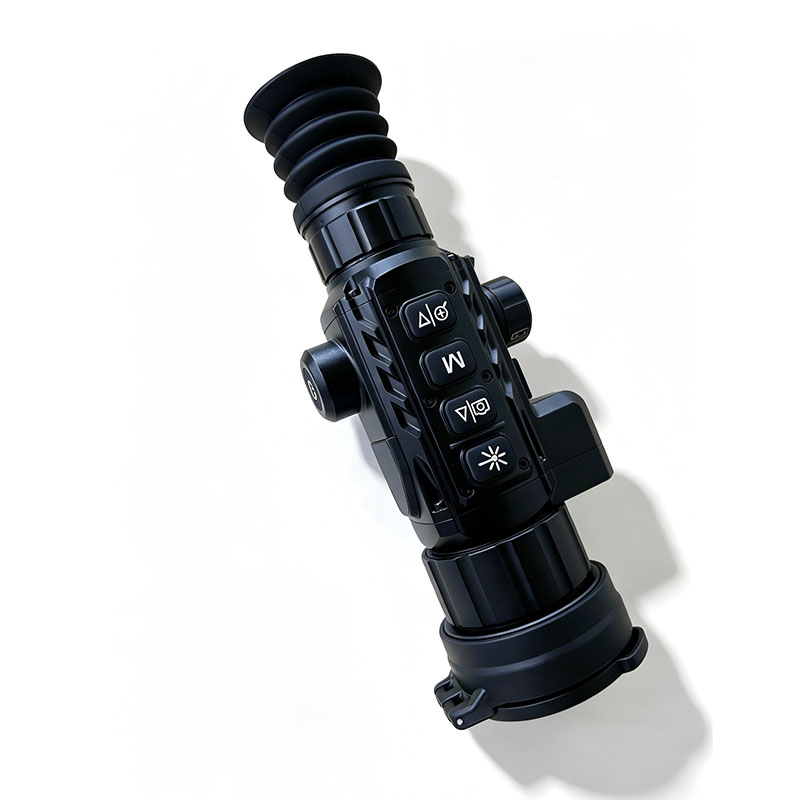

The YJ-R650R Infrared Thermal Imaging Camera features a high-performance 640×512 VOx uncooled infrared detector with a 12μm pixel pitch and NETD ≤20mK, delivering sharp thermal images and excellent temperature sensitivity. It can accurately detect subtle temperature differences, making it ideal for operation in darkness, smoke, fog, and other low-visibility environments.
The device supports 8 color palettes, WiFi wireless transmission, photo and video recording, electronic zoom, bad pixel correction, and a built-in electronic compass, providing a reliable solution for security, industrial inspection, firefighting, and outdoor observation.
Key Features
High-Resolution Thermal Imaging640×512 VOx uncooled infrared detector for clear and detailed thermal images.
High Thermal Sensitivity
NETD ≤20mK enables accurate detection of small temperature differences.
8 Color Palettes
Supports White Hot, Black Hot, Fusion, Red Hot, Green Hot, Sky, Orange, and Gold display modes.
WiFi Connectivity
Built-in WiFi allows convenient wireless image and video transmission.
Multiple Functions
Supports photo capture, video recording, electronic zoom, and bad pixel correction.
Built-in Electronic Compass
Provides real-time directional information for outdoor operations.
Applications
Security & Surveillance
Ideal for night patrols, perimeter security, and border monitoring.
Firefighting & Emergency Rescue
Helps locate people and heat sources in smoke-filled or low-visibility environments.
Industrial Inspection
Suitable for electrical inspections, equipment maintenance, and preventive diagnostics.
Outdoor Observation
Perfect for wildlife observation, outdoor exploration, and nighttime monitoring.
Emergency Response
Supports search and rescue operations in complex environments.
| S/N | Parameters | Qualitative Requirements |
| 1 | Technology | Un-Cooled Thermal Detector |
| 2 | Reticle Pattern | The sight should have a reticle pattern that enables aiming and range estimation for 7.62 mm x 39 mm calibre weapon from 100 m to 500 m with pattern marking at an interval of 100 meter visible in both white hot and black hot polarity. |
| 3 | Zeroing | The sight should have a suitable arrangement for zeroing. The zeroing should not get disturbed post firing / particular engagement. |
| 4 | Detector Resolution (FPA) | (FPA)Not less than 640 x 480 FPAs, pitch less than or equal to 17 microns |
| 5 | Field of view without Optical and Electronic Zoom | 8° (Azimuth) and 6° (Elevation) |
| 6 | Electronic Zoom | Upto 4X |
| 7 | Image Polarity | White Hot and Black Hot |
| 8 | Maximum turn on time | <3 second |
| 9 | Power on/off | switch to be provided |
| 10 | Detection of Single Moving Human Target | Minimum 500m |
| 11 | Recognition of Single Standing Human Target. | Minimum 300 m |
| 12 | Power supply - Battery type | The sight should operate on removable rechargeable batteries. |
| 13 | Power supply - Battery recharge cycles | Minimum number of recharge cycles to be 500 (Accredited Certification). |
| 14 | Power supply - Charging arrangement | Arrangement for recharging batteries by AC/DC source. |
| 15 | Power supply - Alkaline battery compatibility | The sight should also function for minimum 30 minute by using one set of commercially available indigenous Alkaline batteries in the same housing when required by user |
| 16 | Power supply - Battery status indicator | Low Battery Indicator. Battery status display and low battery indicator must be provided. Battery should have auto cut off when fully charged and while switching ON/ OFF, the sight should not emit stray light to indicate own position. |
| 17 | Weight | Weight of sight with batteries and sight mount adapter should be less than 900 gram +10%. |
| 18 | Colour | The sight should be black/ OG in colour. |
| 19 | Carriage and Transportation | The sight should be provided with separate cases for carriage and a hard case for transportation. (ｄｒｏｐ test will be carried out). |
| 20 | Environmental and durability Test | (i) MIL-810H. (ii) Testing/ ｅｖａｌ of Ruggedness. 'ｄｒｏｐ Test & Water Resistance Test' will be conducted Physically. |
| 21 | Operating Temperature | Minus (-) 20º to Plus (+) 40°. Physical |
| 22 | Sight Usage Counter | Sight usage time to be recorded by providing a counter. |
| 23 | EMI/EMC Standards | The sight should meet requisite EMI/EMС standards (MIL Standards 461F) |
| 24 | Controls | 13.1 Power on and off. 13.2 Brightness and Contrast. 13.3 White Hot and Black Hot selection. 13.4 Zoom In/Out. |
| 25 | Carriage and transportation | 14.1 Ruggedized shock proof case compliant to IP-67 / Military Standard 810 H. 14.2 Waterproof soft carry case should be provided with each sight. |
