Products Description

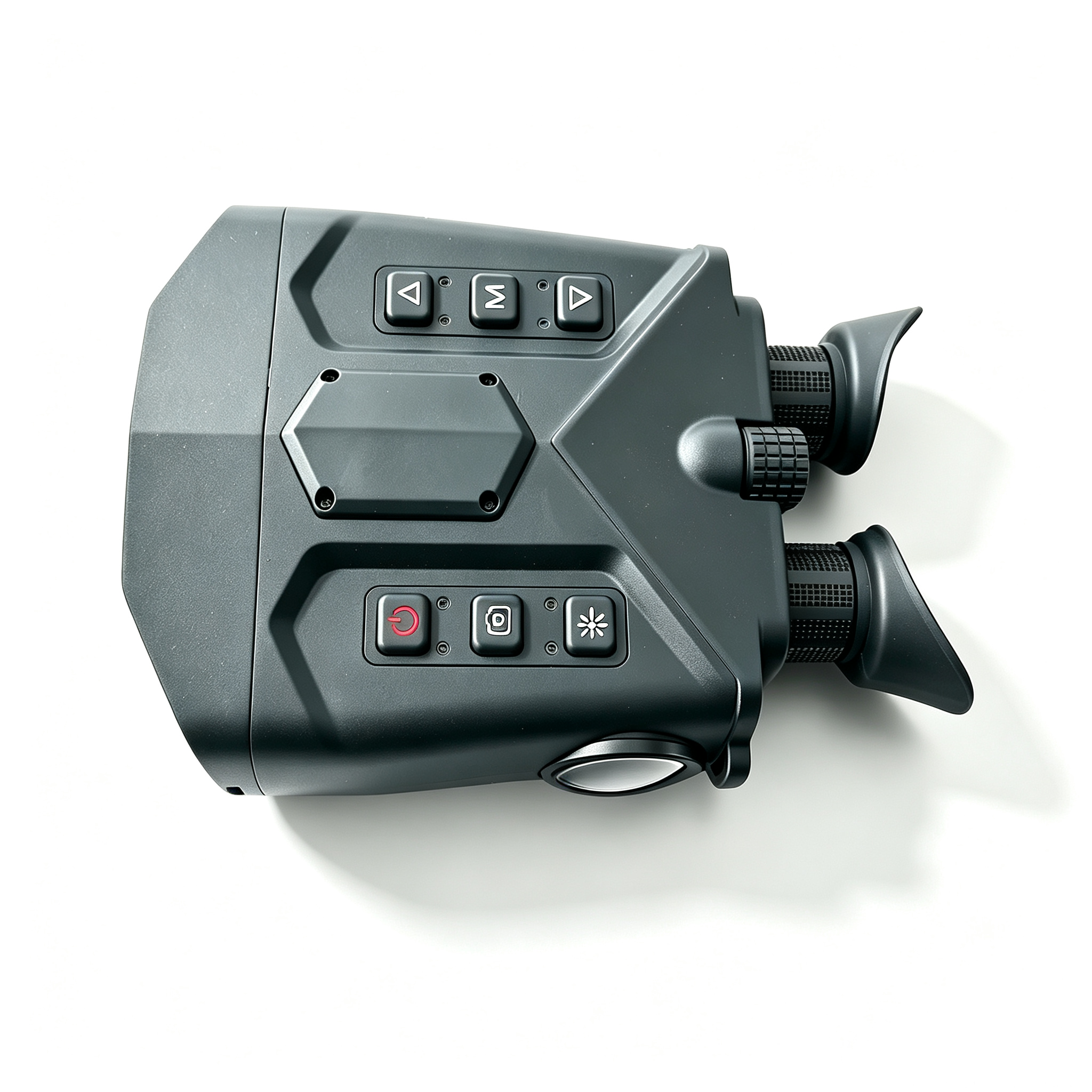

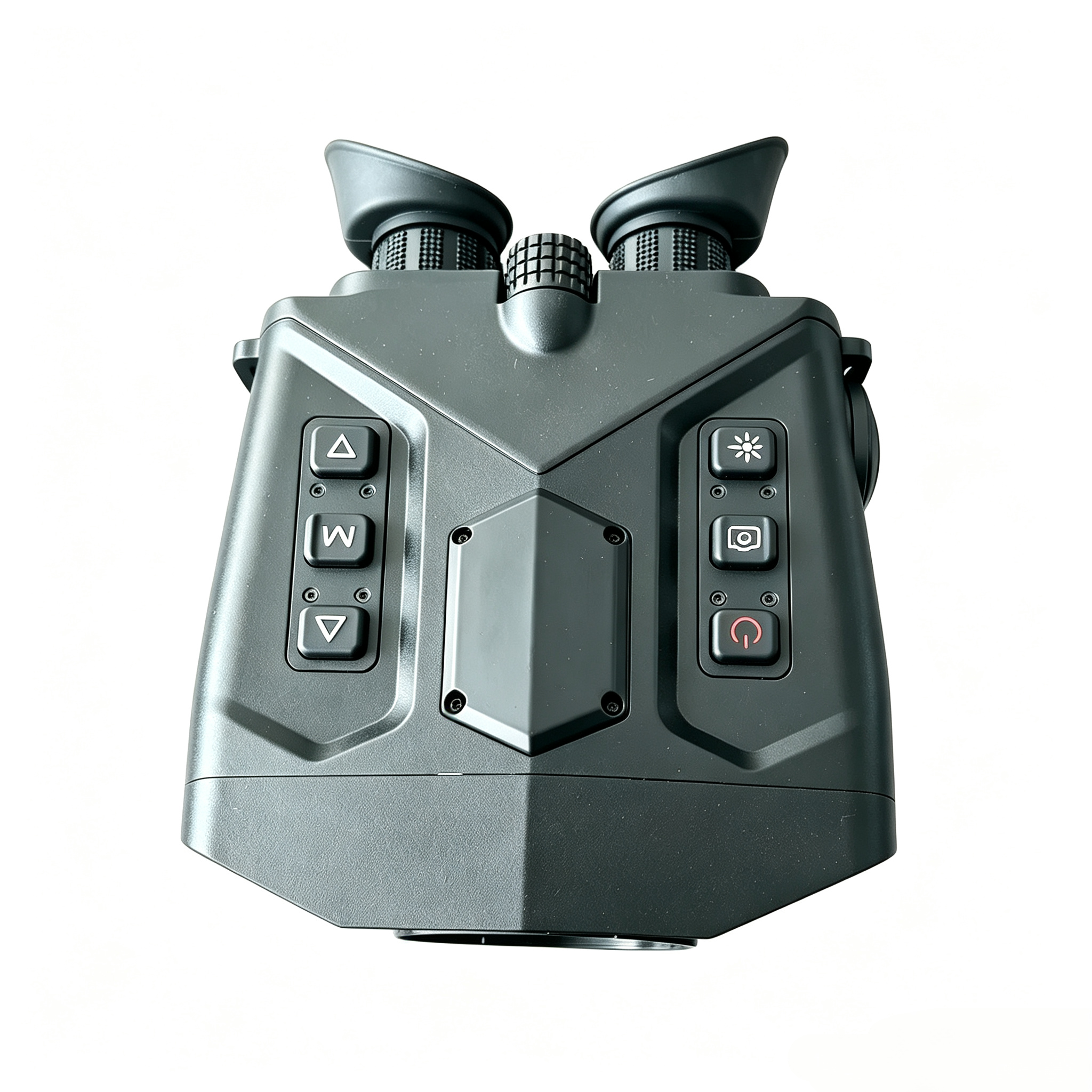

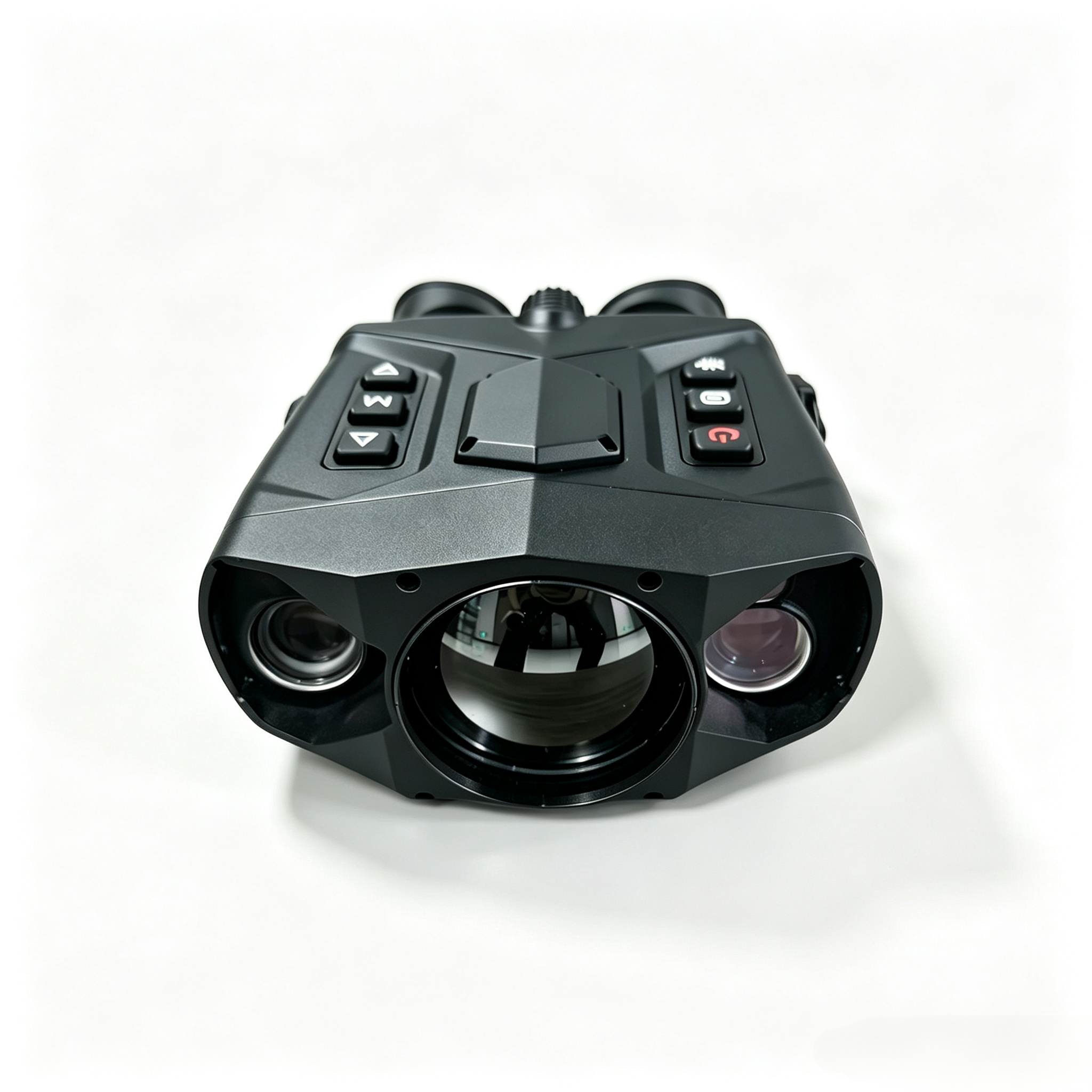

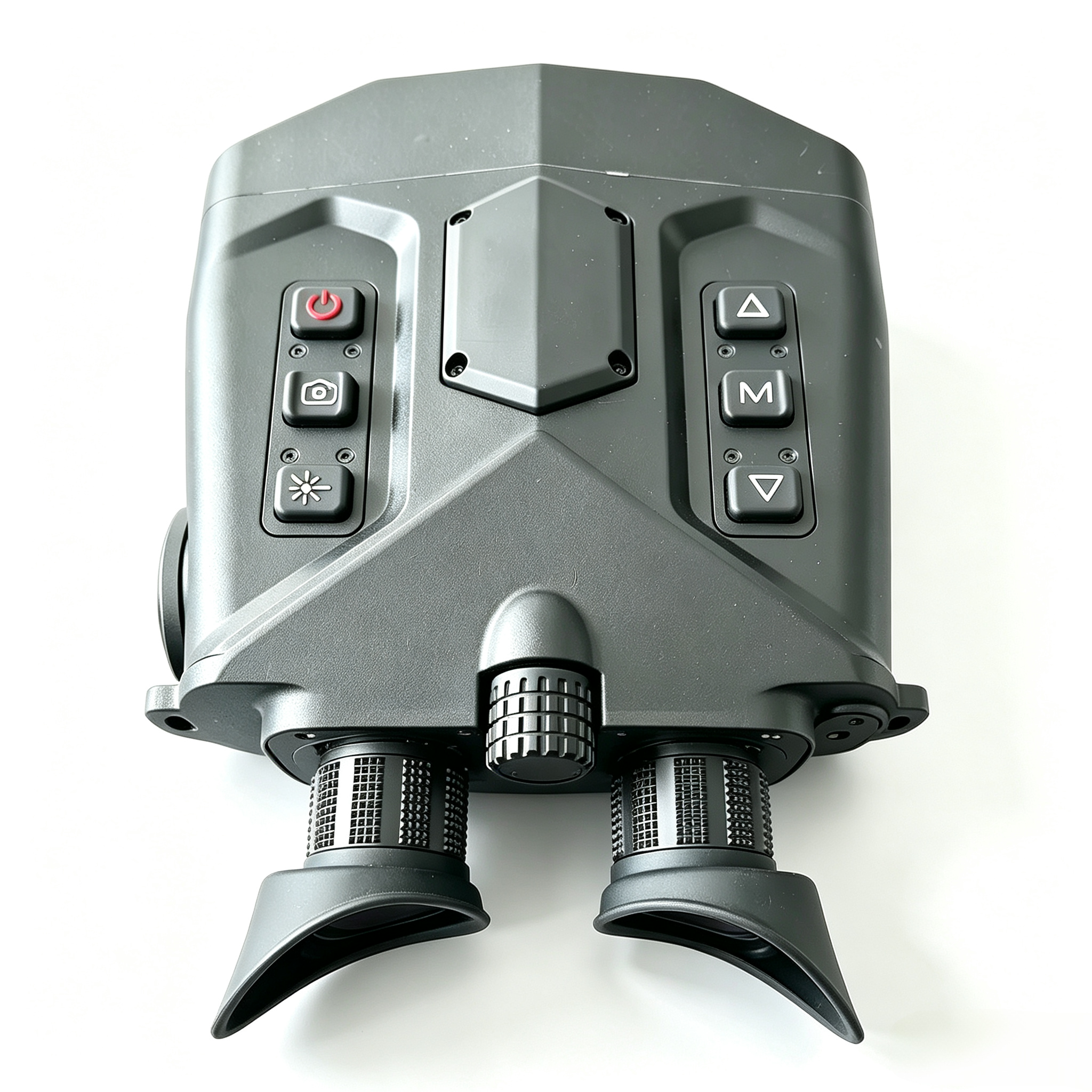

The G Series Uncooled Handheld Red Light Observation Device is a lightweight, portable yet powerful multi-functional handheld observation instrument. It utilizes infrared thermal imaging and visible light imaging technologies for target search, identification, and aiming; it features a built-in laser rangefinder for precise distance measurement, as well as integrated GPS positioning and an electronic compass, enabling both self-positioning and target positioning capabilities. This product series also boasts an exceptionally long battery life, water and dust resistance, and robust durability, ensuring outstanding performance in any harsh environmental conditions.
functional characteristics:
●picture in picture;
● Protection against burns;
● Fog clearance function;
●laser ranging
● Hotspot Tracking + Cursor;
● Photo, video recording and playback functions;
● 1.0–4.0× continuous electronic zoom;
●▲ High-definition SDI external display device;
● Self-localization and target localization;
● Wi-Fi, Bluetooth.
| model | YJ-G670 | |
| heat-imaging | Sensor Type | Uncooled |
| resolution ratio | 640×512 | |
| Pixel size | 12μm | |
| ▲ Lens focal length | 70mmF1.0 | |
| ▲angle of field | 7.27°×5.02° | |
| frame frequency | 50fps | |
| detection range | 3.2km | |
| function | Manual focus adjustment, hotspot tracking + crosshair, anti-burn injury protection | |
| detection range | Under conditions of 10 km visibility and 60% humidity, with a background that is not transparent and a target–background temperature difference of 3 K, the detection range for medium-sized targets (e.g., vehicles) is 5 km, and the recognition range is 2 km. | |
| Identification Distance | Person detection range: 2.5 km; recognition range: 1 km; | |
| visible light | Sensor Type | STMicroelectronics 1/1.8" CMOS Sensor |
| resolution ratio | 1920×1080 | |
| Pixel size | 4μm | |
| ▲ Lens focal length | 105mm | |
| ▲angle of field | 4.1°×2.3° | |
| frame frequency | 50fps | |
| detection range | Under a visibility of 12 km, the background is not transparent; | |
| Identification Distance | Detection range for medium-sized targets (e.g., vehicles) is 8 km; recognition range is 5 km; | |
| Person detection range ≥ 5 km; recognition range ≥ 3 km; | ||
| system function | laser ranging | 6km |
| ▲Image Mode | Black heat, White heat, Red heat, Green heat, Visible light, Picture-in-Picture | |
| electronic enlargement | 1×,2×,4× | |
| indicator | OLED | |
| display resolution | 1920×1080 | |
| language | Supports Chinese, English, Russian, and more. | |
| ▲function | Haze transmission function, photo and video capture, Wi-Fi data transfer, Bluetooth control, target positioning calculation | |
| memory | Built-in 32 GB/64 GB eMMC storage | |
| Interface | Type-C power and data transfer | |
| ▲Positioning and Orientation | GPS positioning + electronic compass – a world-class system supporting both self-positioning and target positioning. | |
| cell | 18650 battery/TYPE-C | |
| continuation of the journey | 8h | |
| way to install | 1/4 standard tripod | |
| ▲weight | 1.5kg | |
| ▲levels of protection | IP67 | |
| work environment | -20°℃~+55°℃,<90% | |
| Storage Temperature | -40°℃~+70°℃ | |
