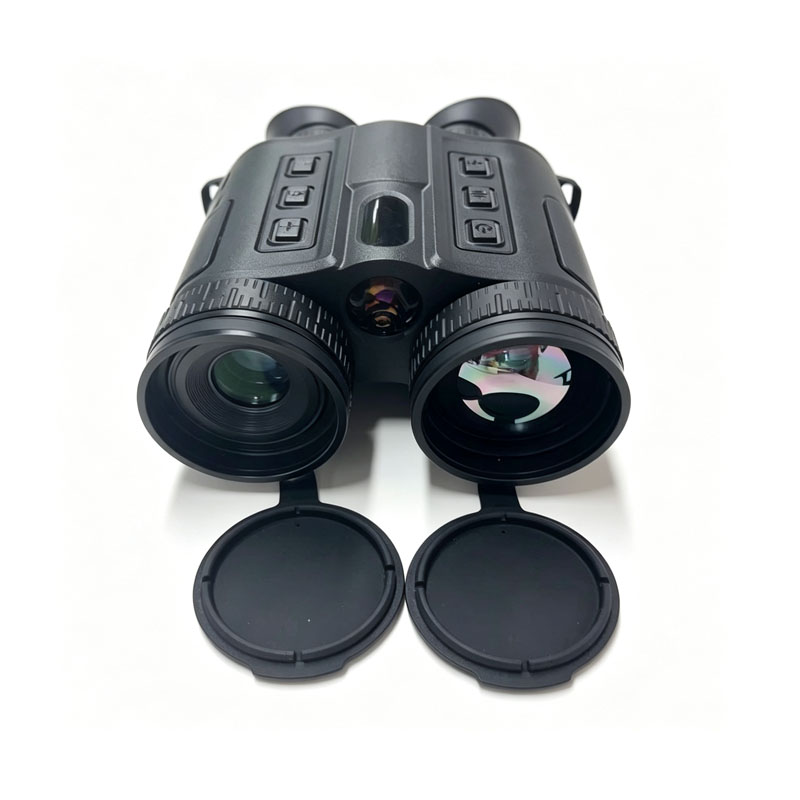

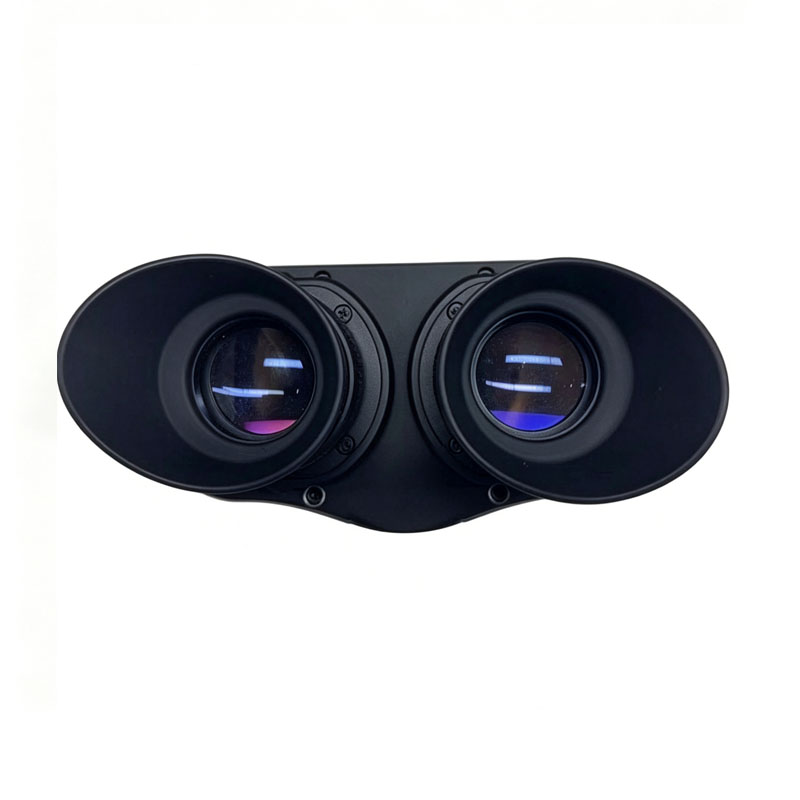

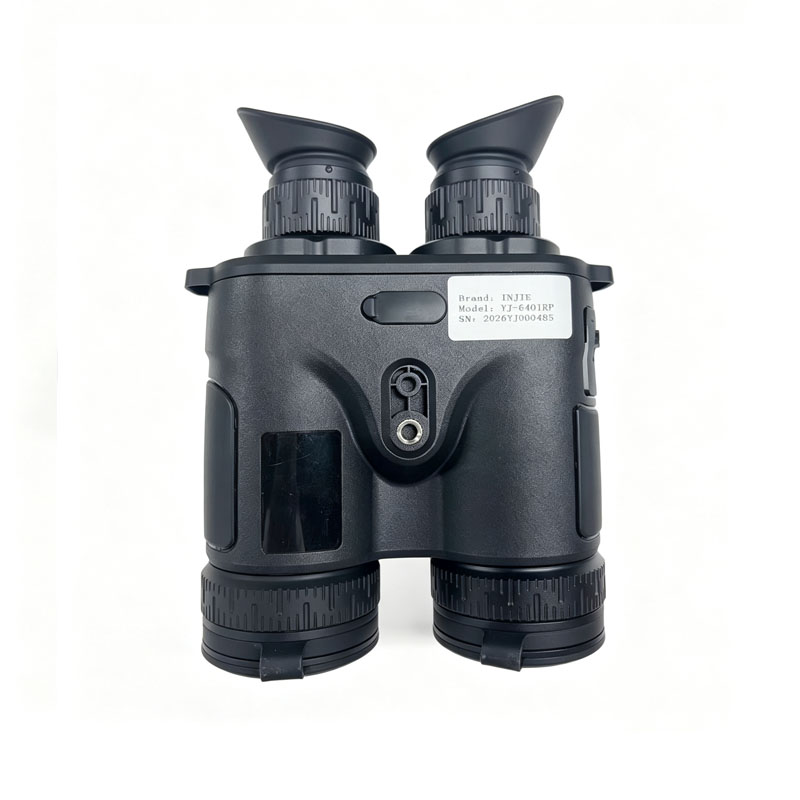

YJ-640IRP Binocular Dual-Image Fusion Thermal Imager
YJ-640IRP Binocular Dual-Image Fusion Thermal Imager

YJ-640IRP Binocular Dual-Image Fusion Thermal Imager

The YJ-640IRP outdoor infrared thermal imager is a dual-eye outdoor thermal imaging telescope featuring robust performance, ultra-high-definition imaging, and a wide range of application scenarios. Equipped with a 1,200 m laser rangefinder and a 640512 infrared detector, it is ideal for your operational needs.
Send Inquiry

Products Description

The YJ-640IRP outdoor infrared thermal imager is a dual-eye outdoor thermal imaging telescope featuring robust performance, ultra-high-definition imaging, and a wide range of application scenarios. Equipped with a 1,200 m laser rangefinder and a 640×512 infrared detector, it is ideal for your operational needs.

The ideal gear for outdoor activities.


Main features:

1. Large-format, high-resolution dual OLED internal display (1920×1080)

2. Supports three image modes—low-light, infrared thermal imaging, and dual-light fusion—to meet the requirements for day-and-night observation and law enforcement operations.

3. Equipped with a built-in low-light camera featuring high resolution (1920×1080 pixels), combined with the device's built-in Wi-Fi-enabled photo and video recording capabilities, enabling convenient real-time evidence capture and on-site video recording.

4. Features built-in GPS positioning for precise determination of latitude, longitude, and elevation; includes a built-in 3D electronic compass that displays azimuth, horizontal roll, and pitch angles in real time.

5. Optional support for precise laser ranging up to 1200 m

6. Quick 2-second power-on

7. Fishbone guide rails may be added to the top.

8. Electric zoom enables convenient observation and operation.


Technical parameter:

Detector type: uncooled amorphous silicon

Wavelength range: 8 μm–14 μm

Resolution: 640x512

Pixel pitch: 12 μm

Noise equivalent temperature difference: 35 mK

Infrared lens

Focal length: 50mm

Frame rate: 50Hz

Field of view: 8.8° × 7.1°

Focusing method: Electric focusing

Detection range: 2,500 m (for personnel: 1.7 m × 0.5 m × 0.3 m); 6,250 m (for vehicles: 4.5 m × 2.0 m × 1.5 m)

Recognition range: 1,000 m (person: 1.7 m × 0.5 m × 0.3 m); 2,500 m (vehicle: 4.5 m × 2.0 m × 1.5 m)

Soft focus lens

Resolution: 1920*1080

Sensor type: ultra-low-light CMOS

Pixel size: 4.0 μm

Focal length: 25mm

Frame rate: ≤30 Hz

Focusing method: No focusing required

image display

Display: 0.39-inch stereo OLED / 1024×768

Pupil distance: 65 mm

Visual acuity adjustment: adjustable from-4D to +4D

Memory card: Built-in

Storage method: Photos/Video

Image format: JPG/MP4

Storage capacity: 64GB

Electronic zoom: 1× 2× 4× 8×

Guide rails: can be added

Picture in Picture: Yes

Hot Topics: Yes

GPS: Yes, GPS/BD

Electronic compass: Yes; quadrant display

WIFI transmission: Yes; 2.4 GHz image transmission

Image modes: Infrared / Low-light / Dual-light fusion / Picture-in-Picture

Thermal imaging color palette: Rainbow, Iron Red, Cool Color, White Hot, Black Hot

Battery type: 3600 mAh, 4×18650 cells

Total power consumption: ≤6 W

Battery life: ≥6 hours

Charging method: Dedicated charger

Dormancy feature: Yes

Operating temperature: -20 °C to +50 °C

Storage temperature: -30 to +70 °C

Impact resistance: ≤30 g

Protection rating: IP66

Physical properties: Weight: 980 g

Shell color: Black

Dimensions: 194 mm × 150 mm × 65 mm

Interface

CVBS output: PAL video output

USB port: Export images and videos

External power supply: DC 12V/1A
