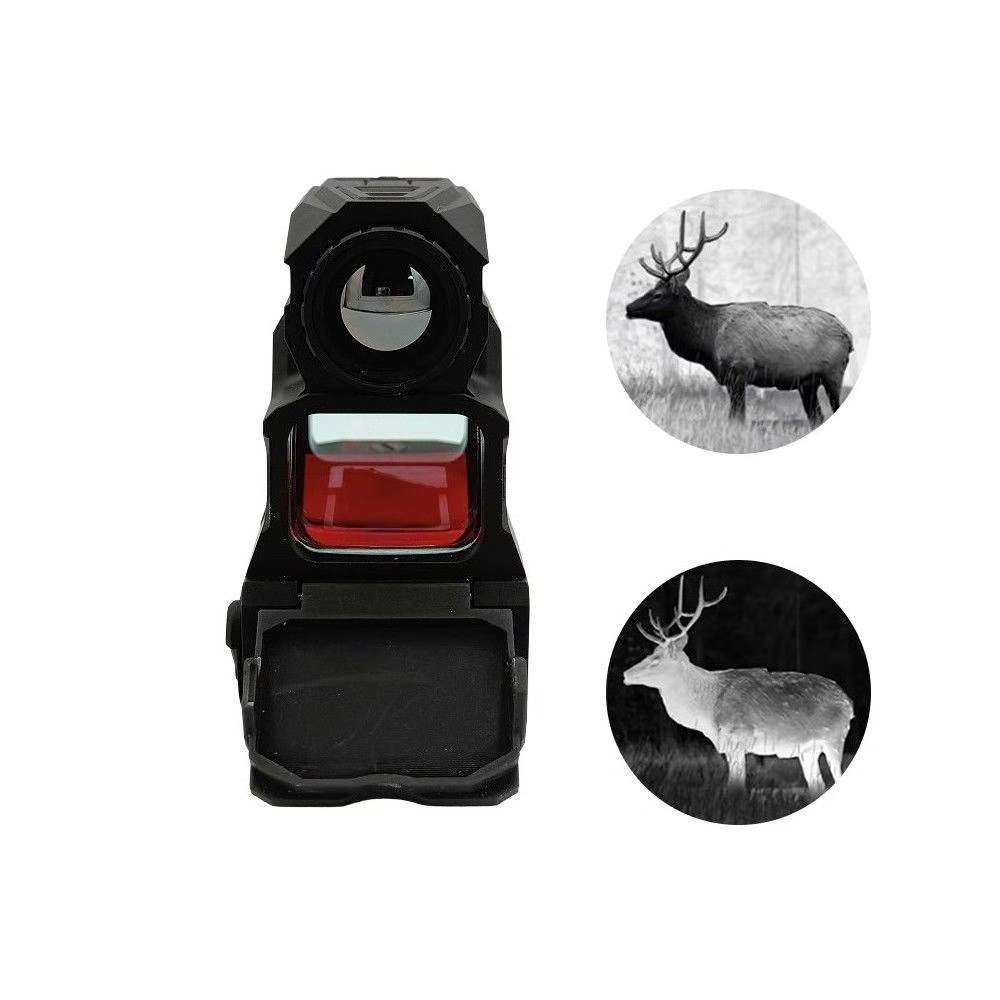

This thermal-fusion red dot sight integrates core capabilities such as multi-spectrum fusion, high-sensitivity infrared detection, high-definition display, and multi-mode image processing, combining the advantages of rapid red dot aiming with infrared thermal imaging detection. Featuring a rugged, all-metal CNC-machined body with an IP67 protection rating, it offers exceptional durability and environmental adaptability, making it a high-performance observation and aiming tool for all-weather outdoor operations.

As an intelligent multi-spectrum fusion aiming device, this product innovatively combines a rapid red dot aiming mechanism with infrared thermal imaging technology to achieve real-time fusion of visible light and infrared imagery. Capable of all-weather operation, it delivers high-definition, true-to-life visuals via the visible light channel during the day and utilizes an infrared detector to capture heat-emitting targets at night. Unconstrained by conditions such as darkness, shadows, or mist, it provides users with clear, intuitive imagery alongside precise, efficient target identification and rapid aiming capabilities, meeting the operational needs of diverse scenarios including field reconnaissance, emergency search and rescue, security patrols, and day-night outdoor observation.

Key Product Features

1. Multi-spectrum fusion imaging for all-weather, day-and-night use: Combines visible light and infrared thermal imaging channels. During the day, it preserves real-world details while overlaying thermal source information; at night, it relies on thermal imaging to detect heat sources without needing infrared illumination, ensuring continuous, round-the-clock operation.

2. Uncooled Vanadium Oxide (VOx) infrared detector: Equipped with a 256×192 resolution uncooled VOx detector, it offers high thermal sensitivity to accurately detect temperature differences in the environment, producing rich, detailed thermal images with stable and reliable target detection performance.

3. High-definition OLED display system: Features a 1024×768 resolution OLED display and an extra-large viewing window. It delivers crisp, detailed imagery and a wide field of view, providing a comfortable, intuitive aiming and observation experience for rapid target acquisition.

4. Multiple reticle styles for diverse scenarios: Built-in with three reticle patterns—red dot, red circle, and dot-with-circle. Users can ｓｅｌｅｃｔ the appropriate style as needed, balancing the requirements for precise long-range aiming and rapid acquisition of moving targets at close range.

5. Multiple infrared image processing modes: Integrates three infrared imaging modes: Black Hot, White Hot, and Outline. Various imaging algorithms adapt to diverse environments—such as rain/snow, jungles, and complex terrain—enhancing the contrast between heat sources and the background to improve target recognition efficiency.

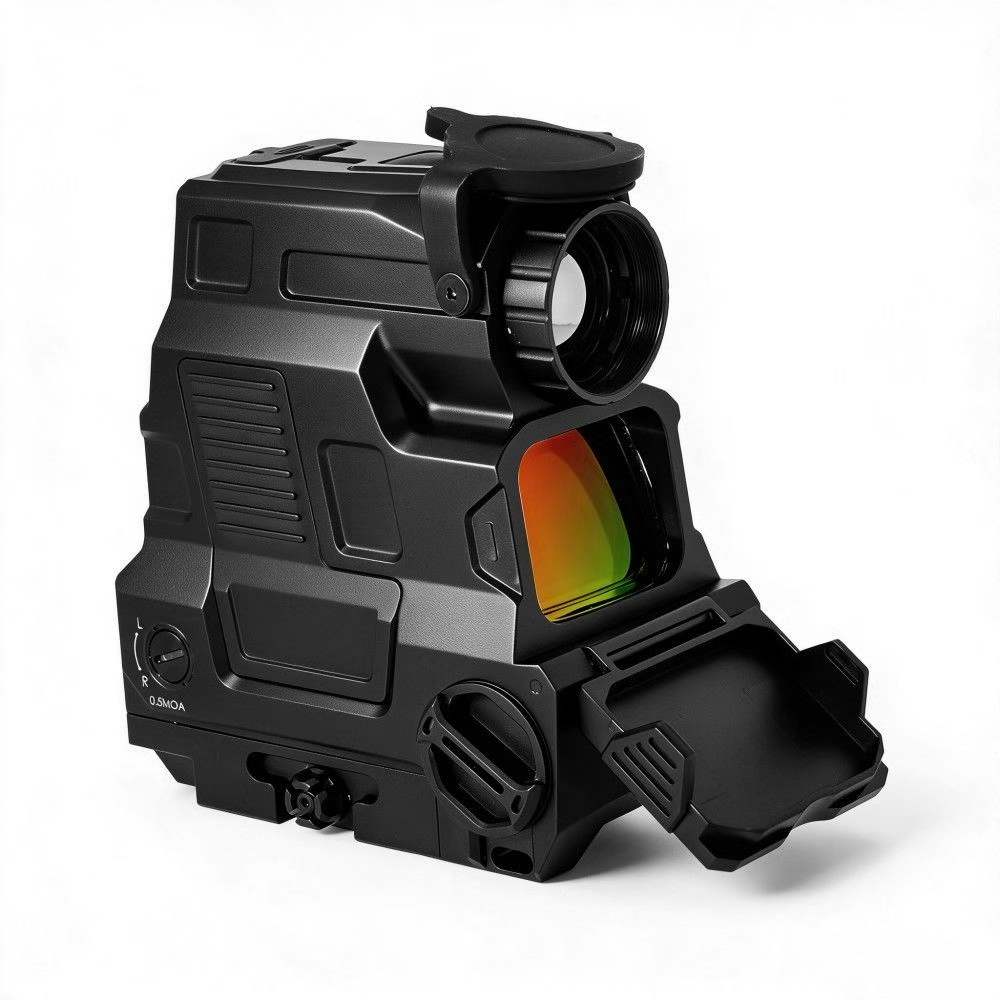

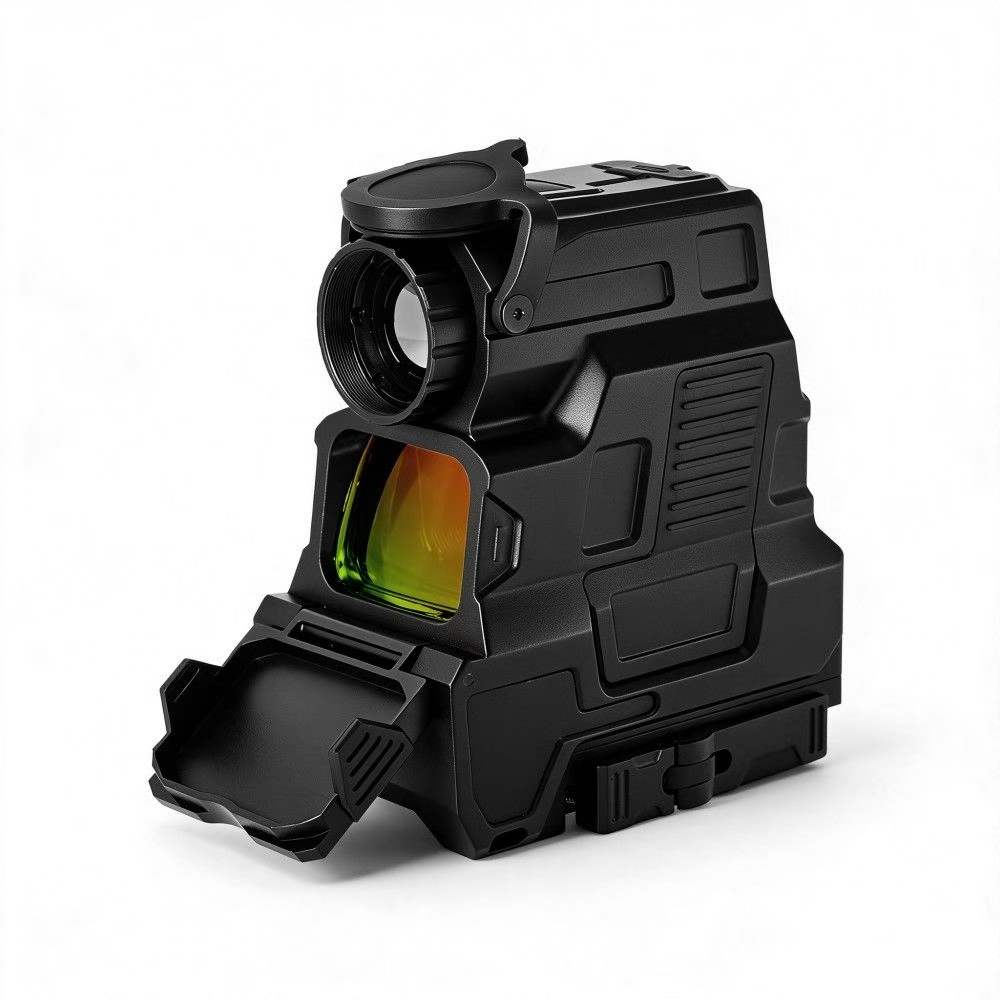

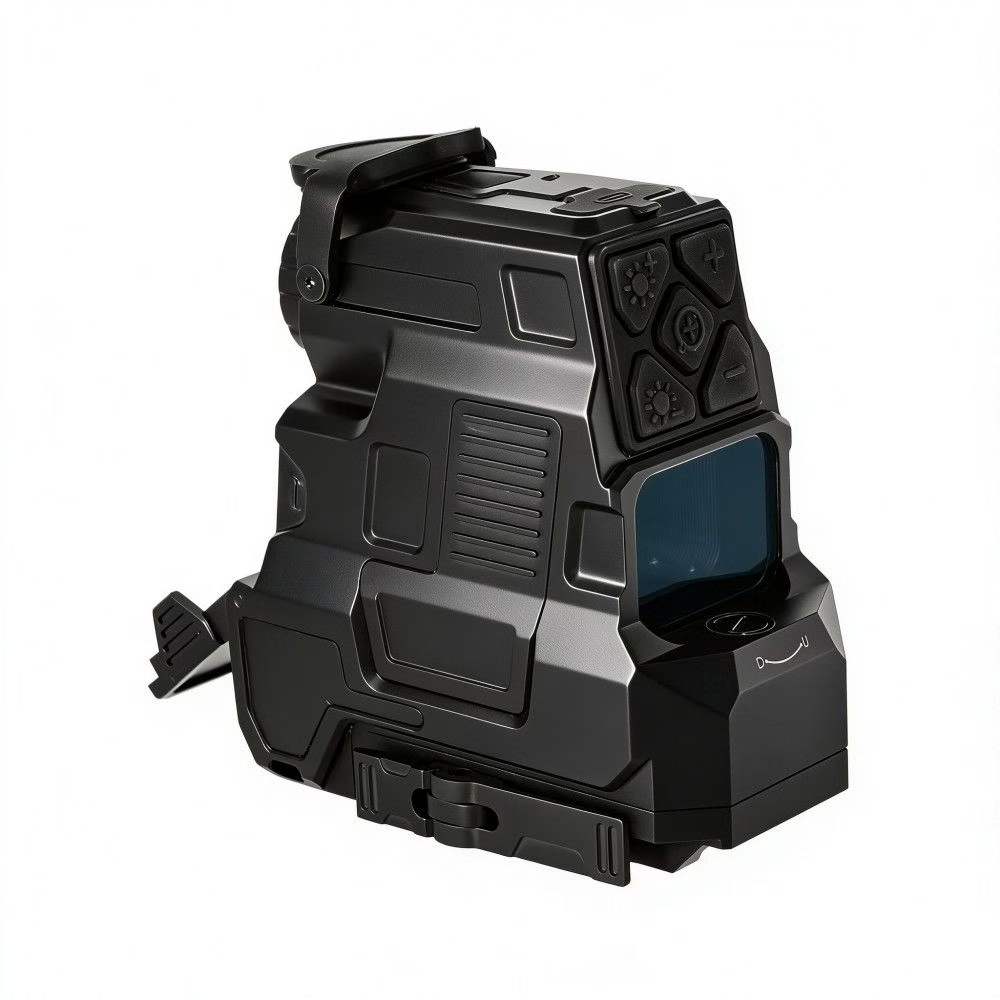

6. Rugged all-metal CNC-machined body: The housing is precision-machined from a single block of metal using CNC technology, ensuring high structural strength and resistance to vibration and impact, making it capable of withstanding the harsh conditions of field use, including rough terrain and shocks.

7. IP67 high-level protection: Rated IP67 for dust, water, and impact resistance, it withstands exposure to sand, dust, and rain, ensuring stable operation in complex outdoor weather conditions.

8. Quick-detach design: Features a quick-release mounting mechanism that allows for rapid installation and removal on standard rails, ensuring convenient deployment.

Product Technical Specifications Table

application scenarios

All-weather target observation and targeting scenarios, including field reconnaissance, emergency search and rescue operations, security inspections, and day-and-night outdoor observation.
