Products Description

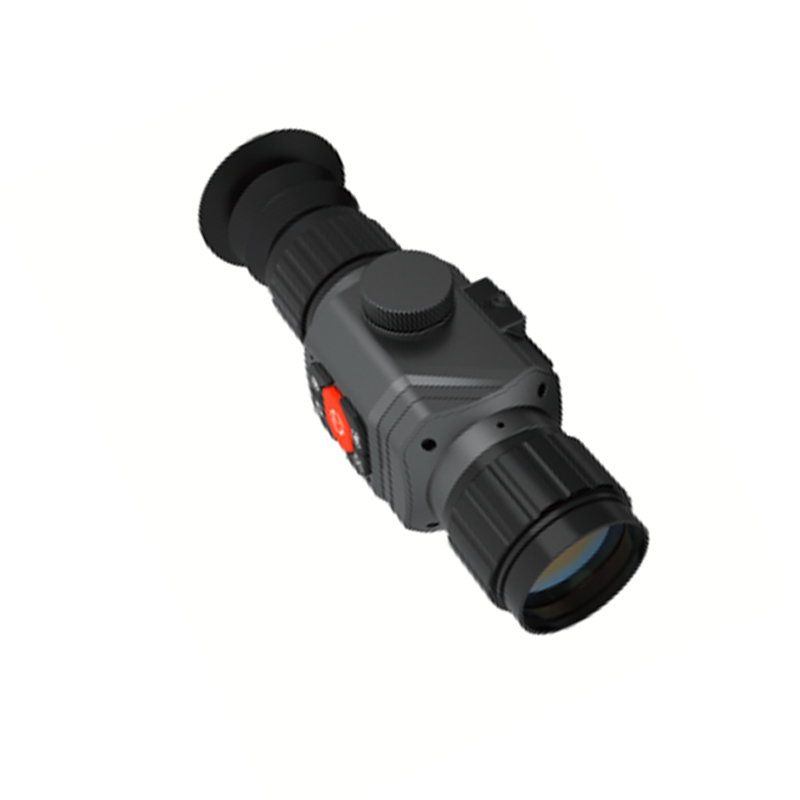

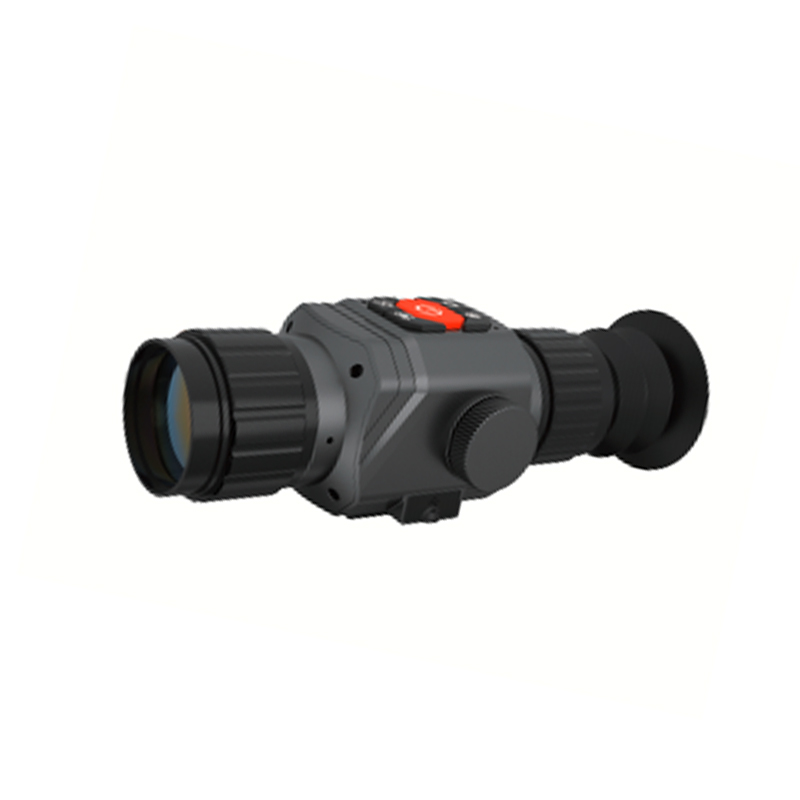

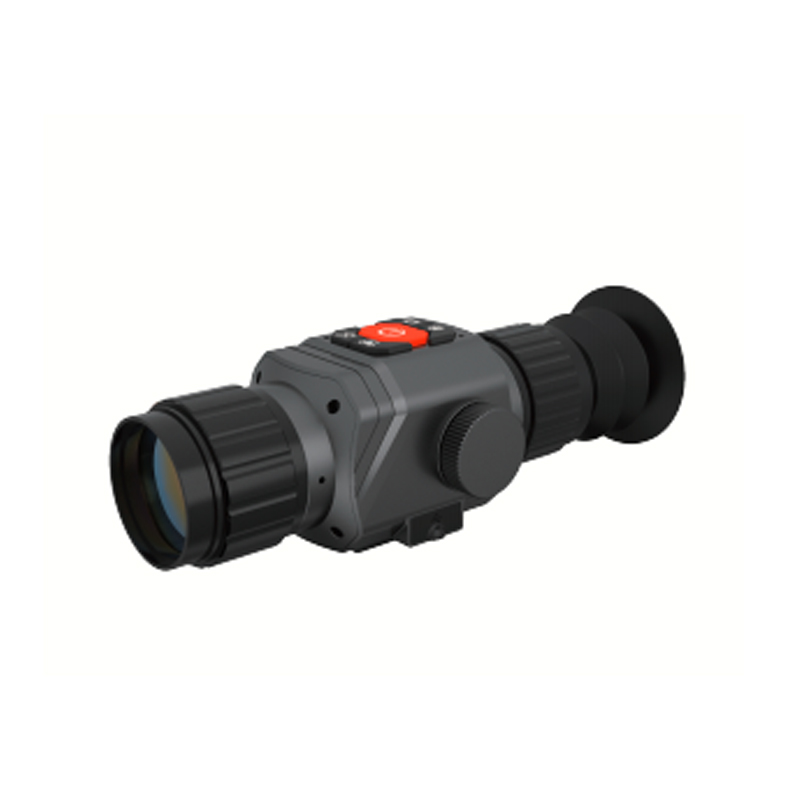

The YJ-C384 Outdoor Thermal Imaging Binocular is a high-performance infrared observation device designed for professional outdoor applications such as hunting, wildlife observation, search and rescue, security patrol, and tactical surveillance.
Equipped with a 384×288 uncooled focal plane infrared detector, advanced image processing algorithms, and a high-resolution OLED display, the YJ-C384 delivers clear thermal imaging performance even in complete darkness, fog, smoke, or harsh environmental conditions.
With multiple interchangeable lens options and long detection ranges, this thermal imaging binocular provides exceptional flexibility for both short-range observation and long-distance target identification.
Key Features
- 384×288 infrared detector with 17μm pixel pitch
- 8–14μm thermal imaging band for stable performance
- NETD < 50mK high thermal sensitivity
- 50Hz refresh rate smooth real-time imaging
- Multiple lenses: 25mm / 35mm / 54mm / 75mm optional
- Detection range: up to 3500m (vehicle, 35mm lens)
- OLED 1024×768 display with clear image output
- 2x / 4x / 8x / 16x digital zoom
- 6 color palettes (White Hot, Black Hot, Rainbow, etc.)
- Hotspot tracking & multi-target detection
- 7 reticle options for accurate aiming
- IP66 waterproof, shock-resistant (800G)
- Lightweight design: only 500g
- 6 hours working time, Type-C charging
Applications
- Hunting & wildlife observation
- Border patrol & security surveillance
- Search and rescue missions
- Outdoor night observation
- Industrial inspection
| Detector type | Uncooled focal plane |
| Detector resolution | 384x288 infrared focal plane |
| Detector pixel spacing | 17um |
| Detector frame rate | 50Hz |
| Detector response band | 8um-14um |
| Detector noise equivalent temperature difference | <50mk |
| Infrared lens focal length | 25mm, 35mm, 54mm, 75mm, |
| Lens adjustment | manual focus and sharpness adjustment |
| Infrared lens field of view | 14.9°x11.2°; 10.7°x8.0°; 6.9°x5.2°; 5.0°x3.7° |
| Image processing | non-uniformity correction, image smoothing function, image detail enhancement, digital filtering and noise reduction. |
| Image detail mode | 5-stop image edge adjustment (0-4), or 5-stop image |
| Detail adjustment (0-4). | |
| Display | OLED 0.5" 1024X768 |
| Electronic amplification | 2x, 4x, 8x, 16x performance indicators |
| Brightness adjustment | 10 levels of brightness adjustment (0-9) |
| Contrast adjustment | 10 levels of contrast adjustment (0-9) |
| Palette | 6 types of palettes, rainbow, hot metal, white hot, black hot, yellow saturated, birding mode. |
| Hotspot tracking | hotspot tracking instructions, automatically tracking multiple hotspot targets, and you can also choose to turn on or off the hotspot tracking function. |
| Cross cursor | 7 types of cross cursors. You can change different cursors at will to accurately locate the target. You can also choose to turn on or off the cross cursor. |
| Cursor distance calibration | Calibrate the cursor positioning according to different distances, change the target distance cursor at any time, and accurately aim at the target. |
| Target distance (25mm lens) | |
| People: detection distance: 1667 meters, identification distance: 471 meters | |
| b. Wild boar: detection distance: 1471 meters, identification distance: 367 meters | |
| c. Vehicle: detection distance: 2501 meters, identification distance: 626 meters | |
| Target distance (35mm lens) | |
| a. People: detection distance: 2334 meters, identification distance: 584 meters | |
| b. Wild boar: detection distance: 2059 meters, identification distance: 514 meters | |
| c. Vehicle: detection distance: 3501 meters, identification distance: 876 meters | |
| Storage capacity | 16G |
| Image type | BMP |
| USB | Type-C |
| Battery model | 18500 Panasonic lithium battery; 2040mAH |
| Working hours | 6 hours |
| Package Type | Metal |
| Impact resistance | 800G IEC68-2-29 |
| Weight | 500g |
| Product size | 180x72x62mm (25mm focal length) |
| Protection level | IP66 |
| Working temperature | 0℃ to 45℃ |
| Storage temperature | -20℃ to 60℃ |
| Power consumption | 1w |
