Products Description

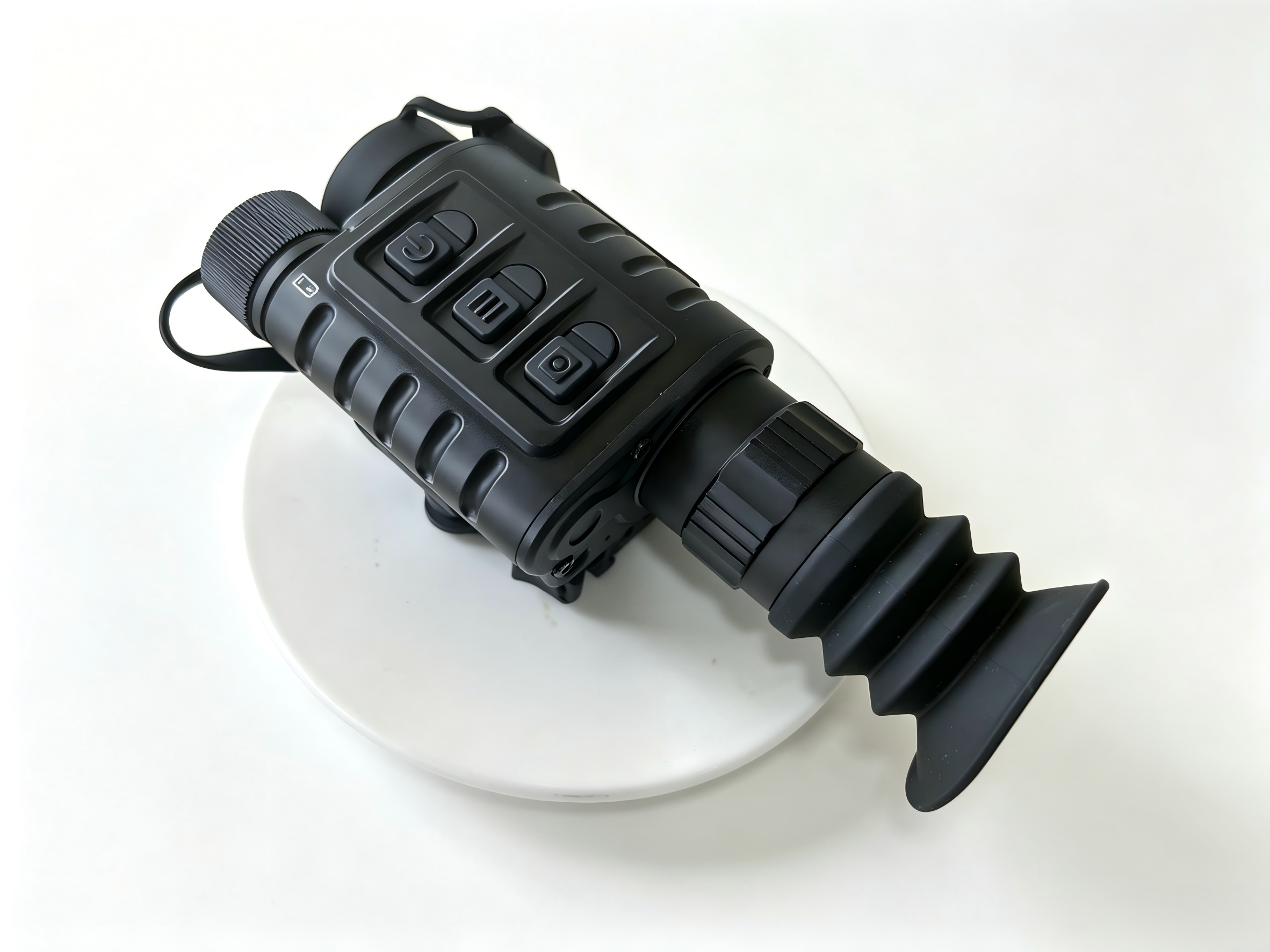

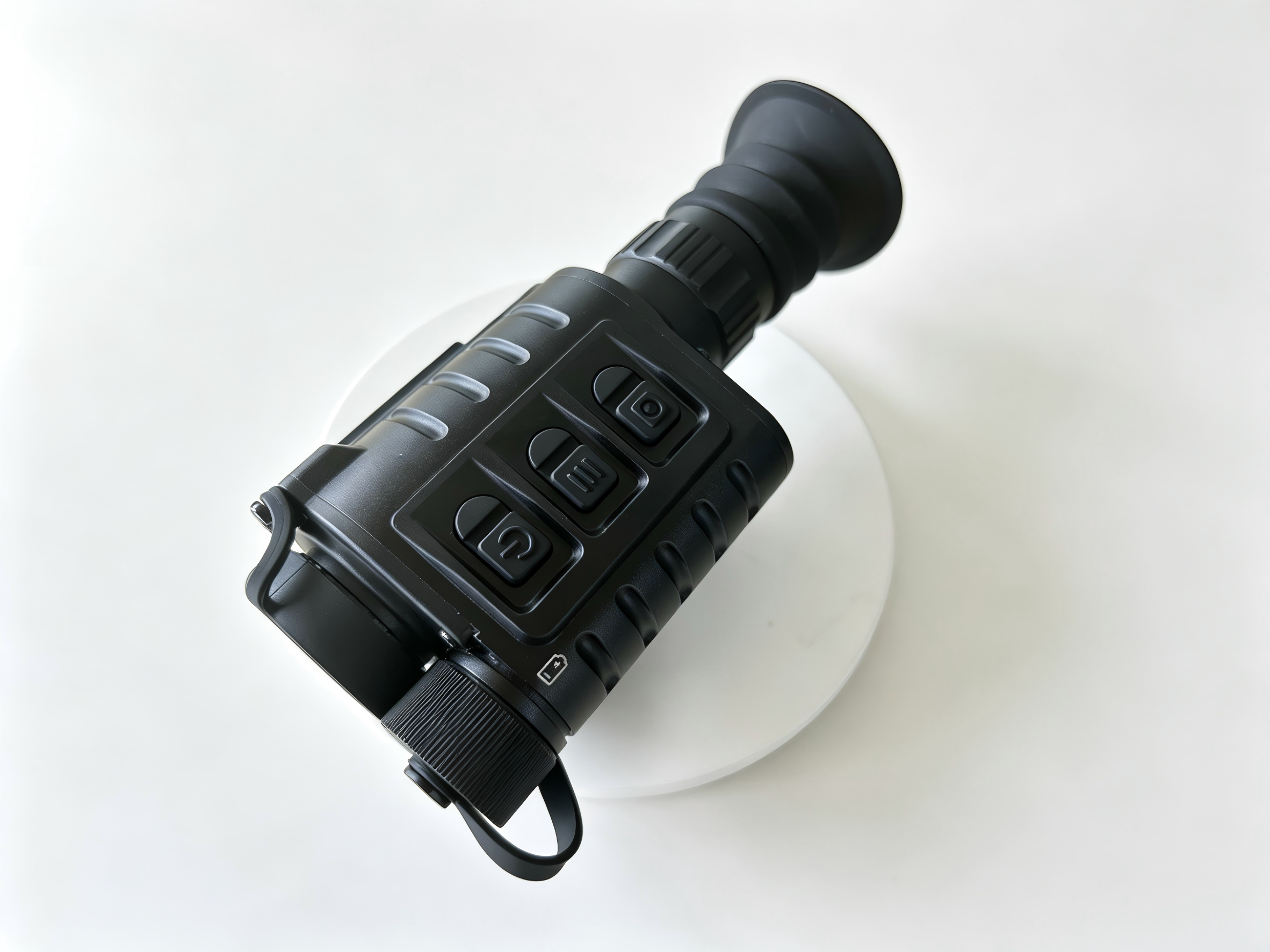

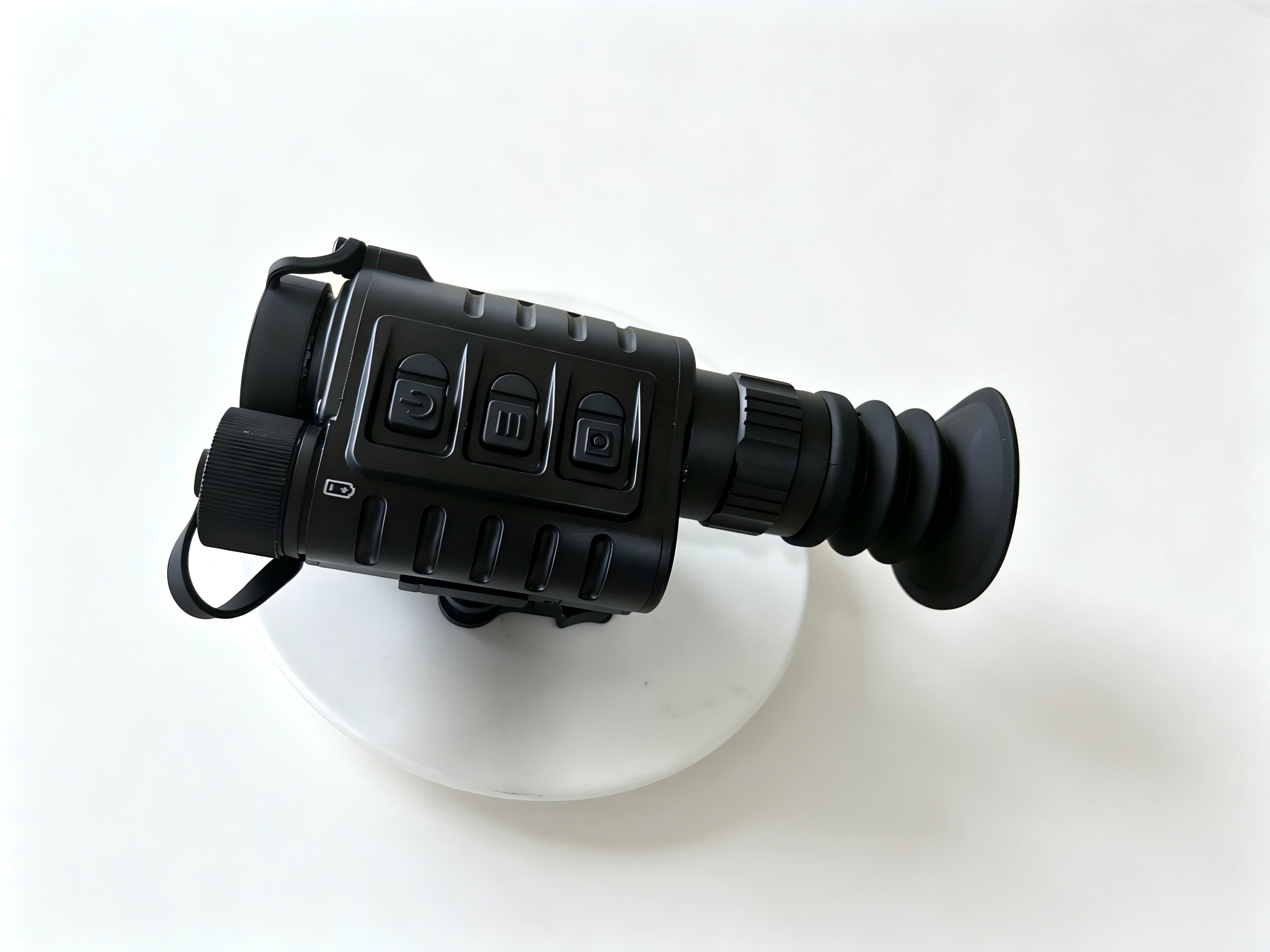

YJ-625S Multifunctional Infrared Night Vision Device
High-Definition Night Vision · Precise Aiming · Intelligent Connectivity · All-Weather Operation
The YJ-625S Multifunctional Infrared Night Vision Device is a high-performance infrared night vision device that integrates handheld observation and rifle aiming applications. It is designed for scenarios such as hunting, security patrols, wilderness search and rescue, law enforcement inspections, and outdoor exploration. With advanced infrared imaging technology, rich intelligent functions, and a rugged and durable design, it provides users with a clear and stable target observation experience even in complete darkness, dense fog, or complex environments.
Product Features
1. Handheld and rifle sight operating modes.
2. Four image polarity switching modes (white thermal, black thermal, red thermal, and fusion).
3. Supports Wi-Fi wireless transmission.
4. Built-in electronic compass and angle sensor.
5. Supports gun calibration function.
6. Supports dead pixel correction.
7. Supports picture-in-picture function.
8. Supports electronic zoom.
9. Supports photo and video recording.
| Category | Specification |
|---|---|
| Detector Resolution | 640 × 512, 12μm |
| Display Resolution | 1024 × 768, 7.8μm OLED |
| Detection Range | Human: ≥600m; Vehicle: ≥1050m |
| Objective Lens | 25mm F1.0 |
| Diopter Adjustment | -4D ~ +4D |
| Field of View (FOV) | 17.2° × 13.7° |
| Focus Range | 1m ~ ∞ |
| Exit Pupil Diameter | ≥6mm (Eyecup Retracted); 15mm (Eyecup Extended) |
| Power Supply | 1 × Rechargeable 18650 Li-ion Battery (3.7V) |
| Continuous Operating Time | ≥6 hours (25°C ± 5°C) |
| Data Interface | USB Type-C (Supports Data Storage & Firmware Upgrade) |
| Mounting Interface | Picatinny Rail, Compatible with Helmet Mount |
| Operating Temperature | -20°C ~ +50°C |
| Storage Temperature | -30°C ~ +70°C |
| Protection Rating | IP67 |
| Shock Resistance | 1000G (Using Original Mount) |
