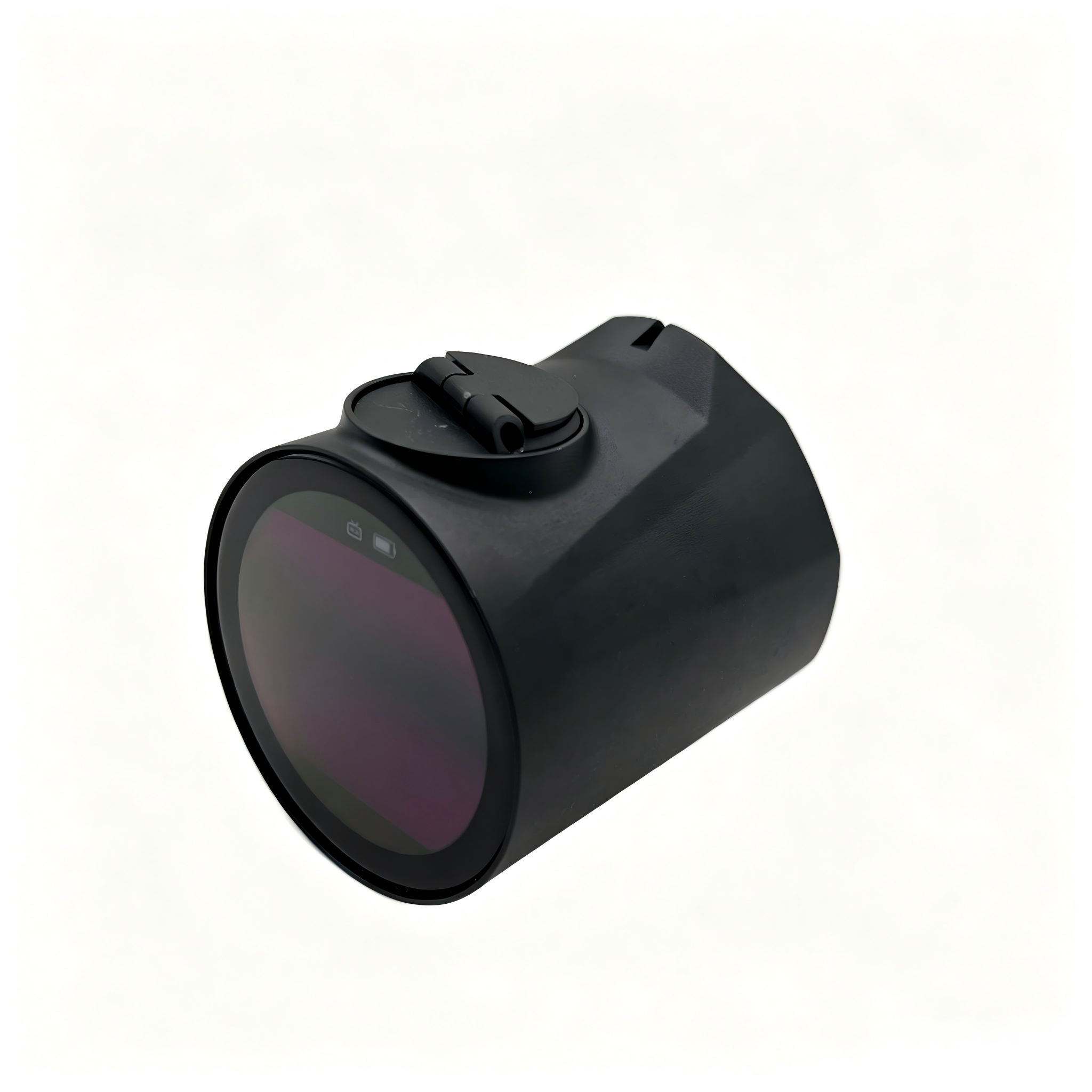

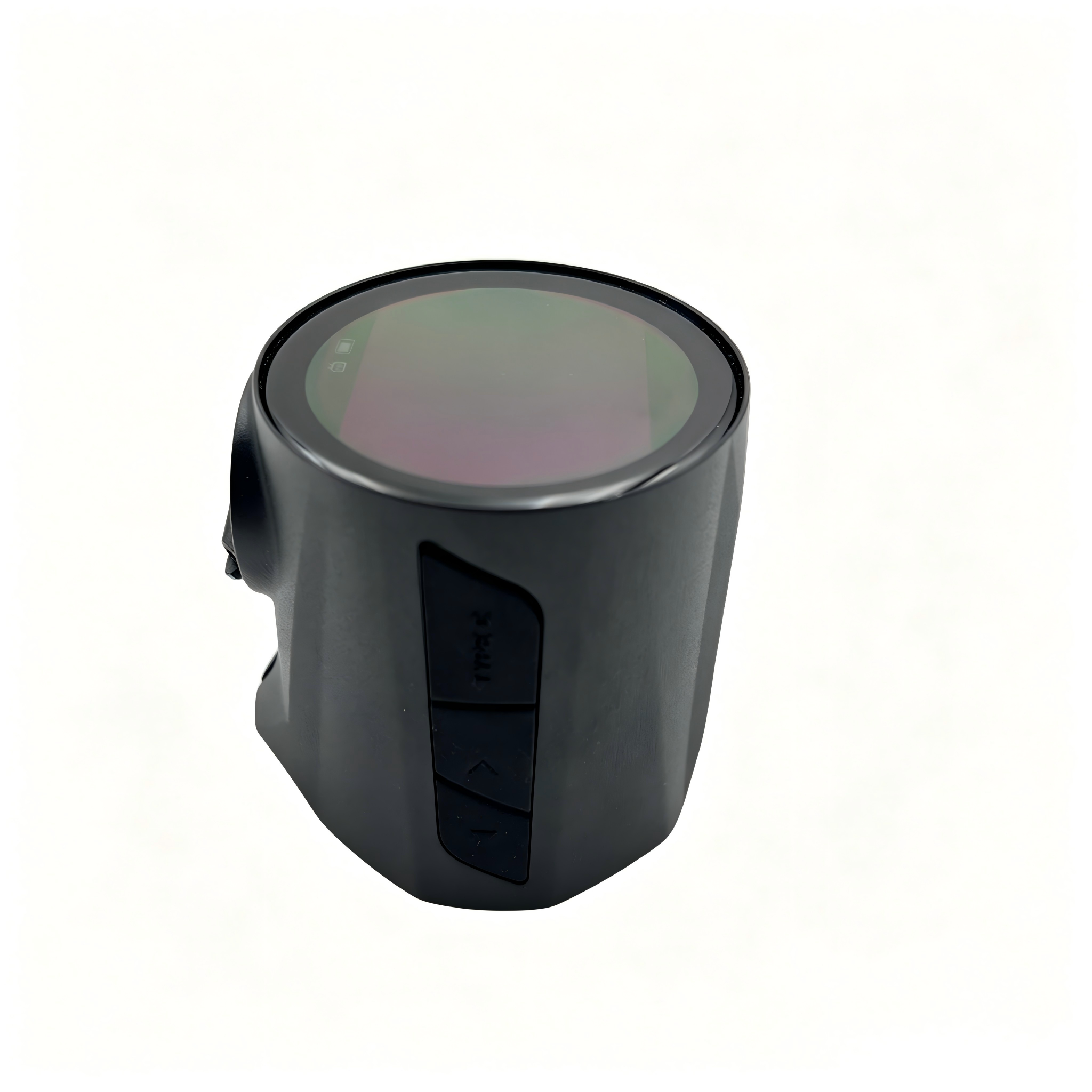

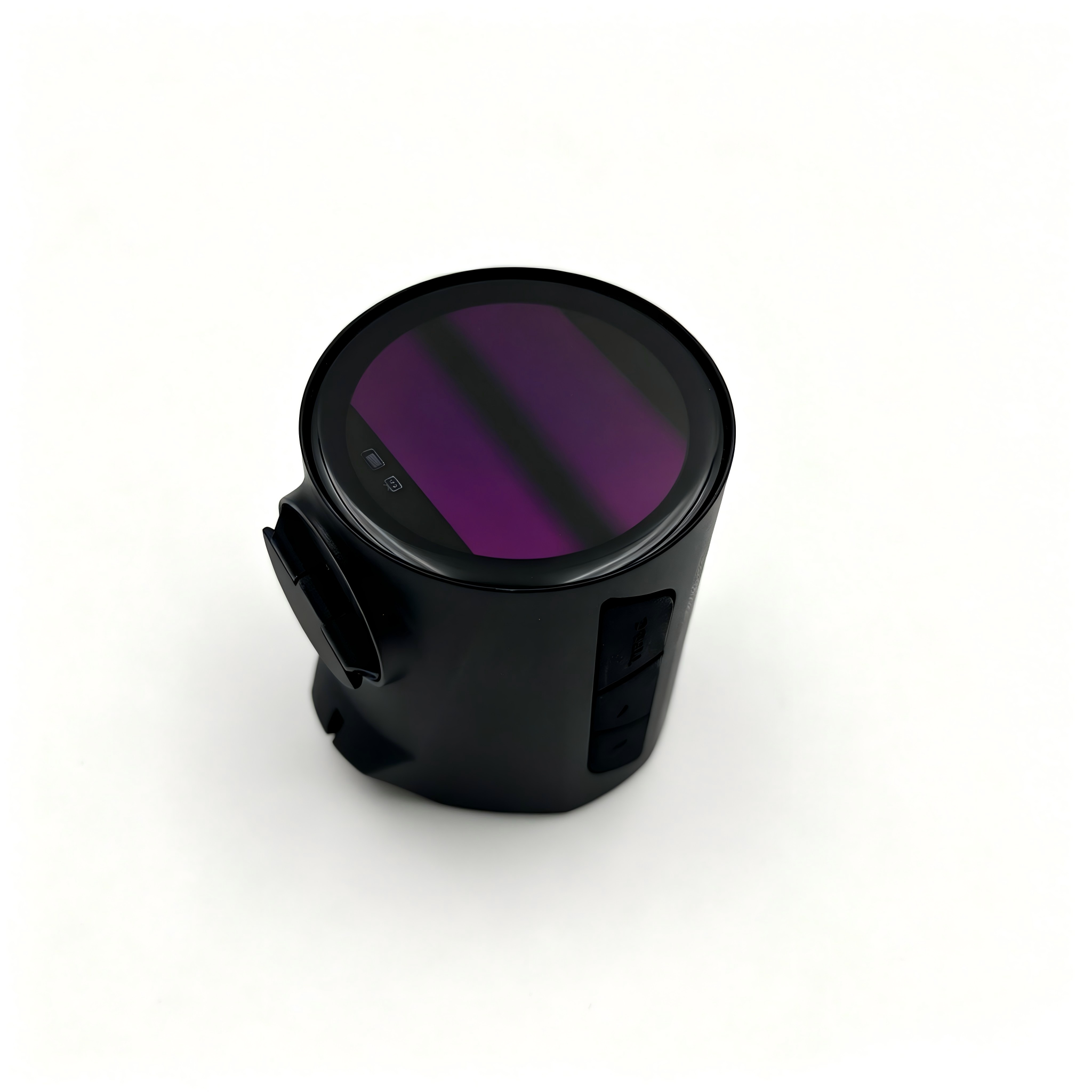

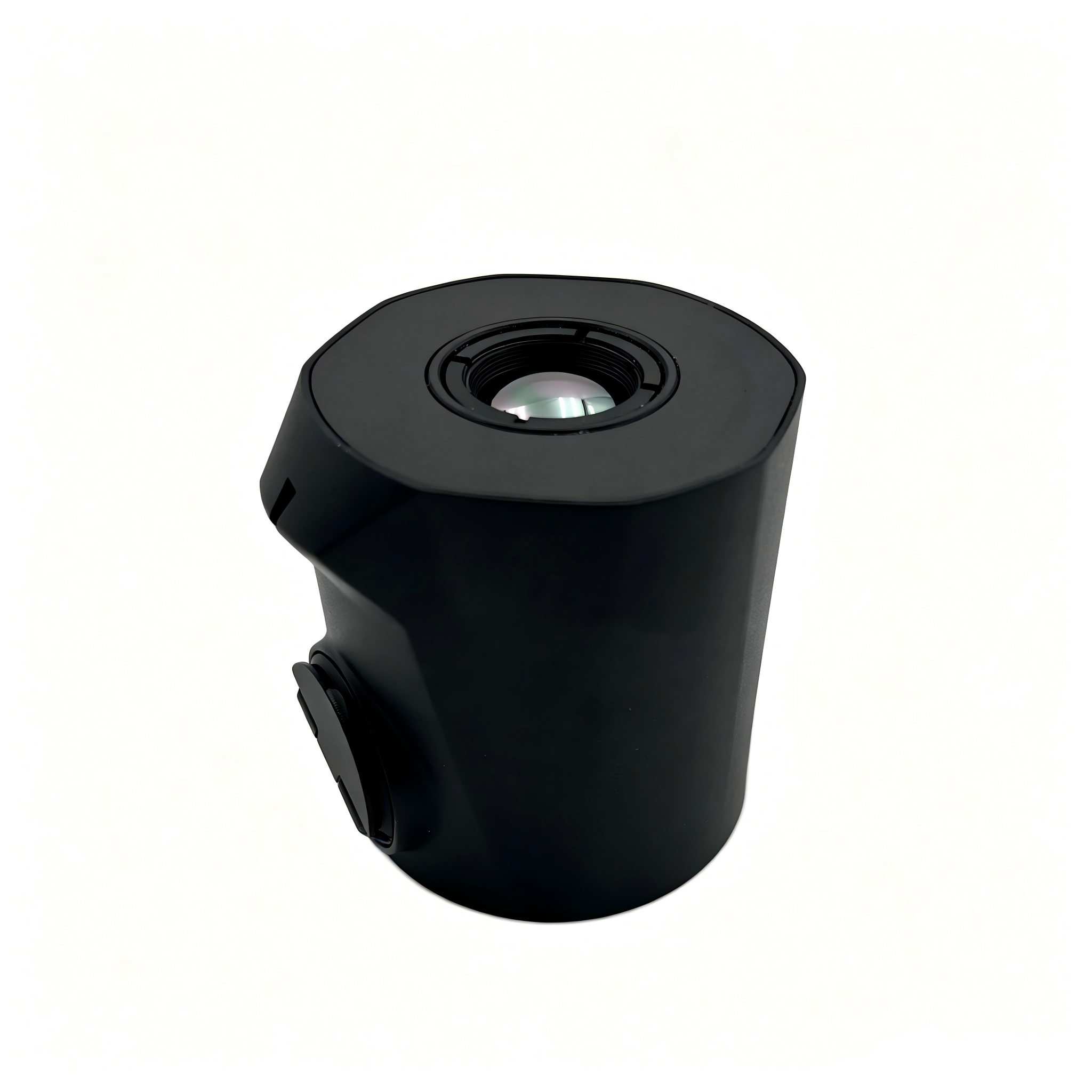

YJ-340MI Infrared Thermal Imager This product is a Mini Touch infrared thermal imaging camera with a three-in-one (mini search, mini sight, and mini helmet) design.
Send Inquiry

Products Description

Product description

This product is a Mini Touch infrared thermal imaging camera with a three-in-one (mini search, mini sight, and mini helmet) design.

It mounts to the most popular handguns and helmets on the market, and features a 384x288 infrared detector capable of reproducing the color and detail of infrared images in both day and night conditions.

It also has a 45mm diameter OLED with a large field of view, supports touch and button dual operation modes, and can respond quickly in various complex or harsh environments.


Product features

1) Highly sensitive 384x288 infrared detector;

2) 1.4-inch touch screen, OLED large-screen display;

3) Adopt high-performance AI chip and image detail enhancement technology;

4) Ergonomic design, with dual touch and button operation modes;

5) Multiple image modes and crosshairs, which can be quickly switched by sliding your finger;

6) High reliability, 1000g high impact resistance.


CategoryItemSpecification
PhysicalNet Weight≤120g
Dimensions52mm × 48mm × 51mm
Operating Temperature-20°C ~ +50°C
DetectorDetector TypeUncooled Focal Plane Arrays
Resolution384 × 288
Pixel Pitch12μm
Spectral Range8μm ~ 14μm
OpticalLens Focal Length13mm, F0.9
Field of View13.5° × 10.1°
PerformanceFrame Rate25Hz
Detection Range≤700m
PowerBattery Type16340
Operating Time≥4 hours (at 25°C)
DisplayScreen1.4-inch OLED, 466 × 466
Brightness ControlYes
Color PalettesBlack Hot / White Hot / Red Hot / Fusion
FunctionVideo RecordingOn-board video recording
Photo CaptureYes
Cursor / ReticleYes
StorageInternal StorageBuilt-in eMMC
DurabilityShock Resistance1000g / 0.4ms
