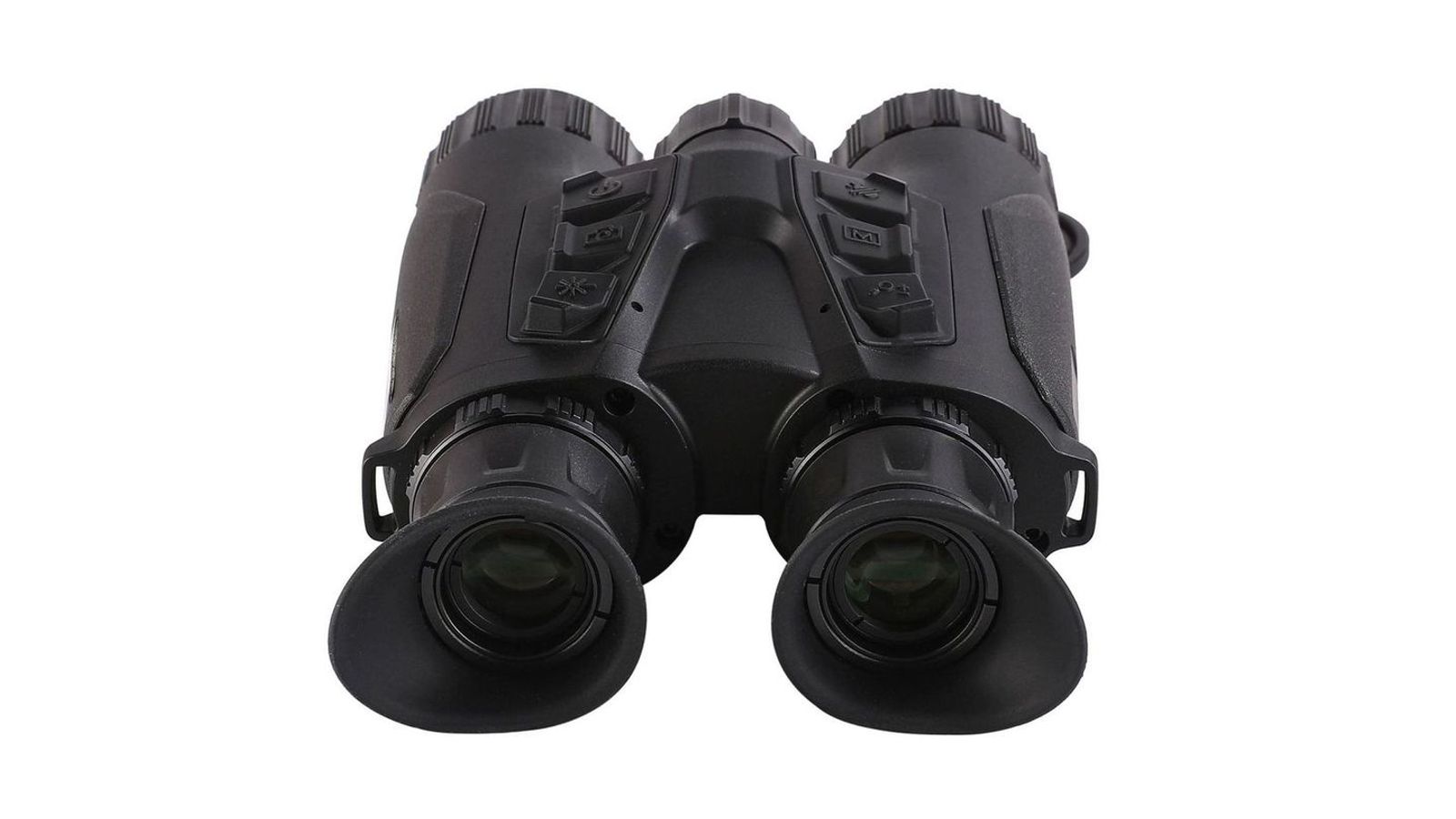

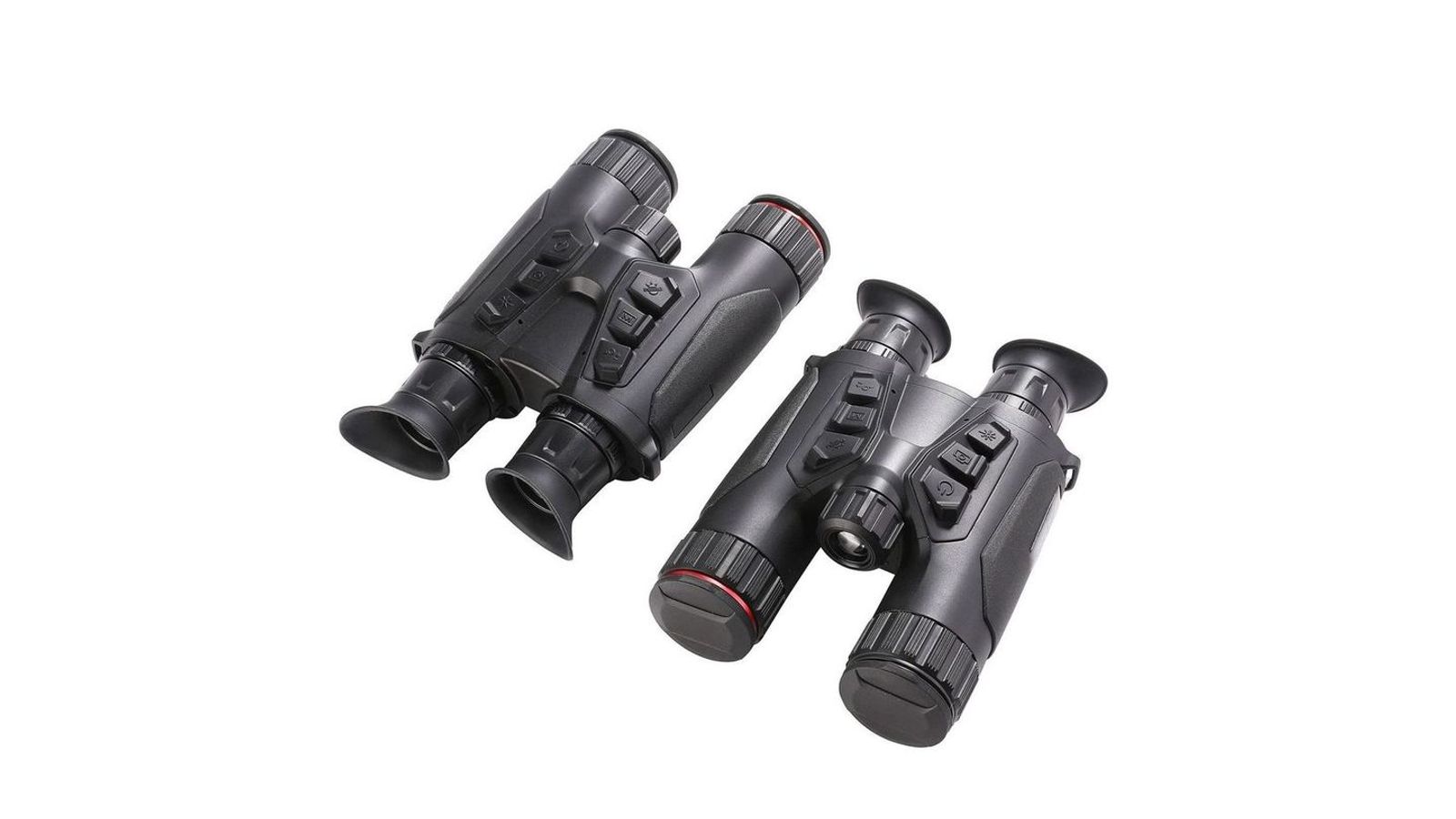

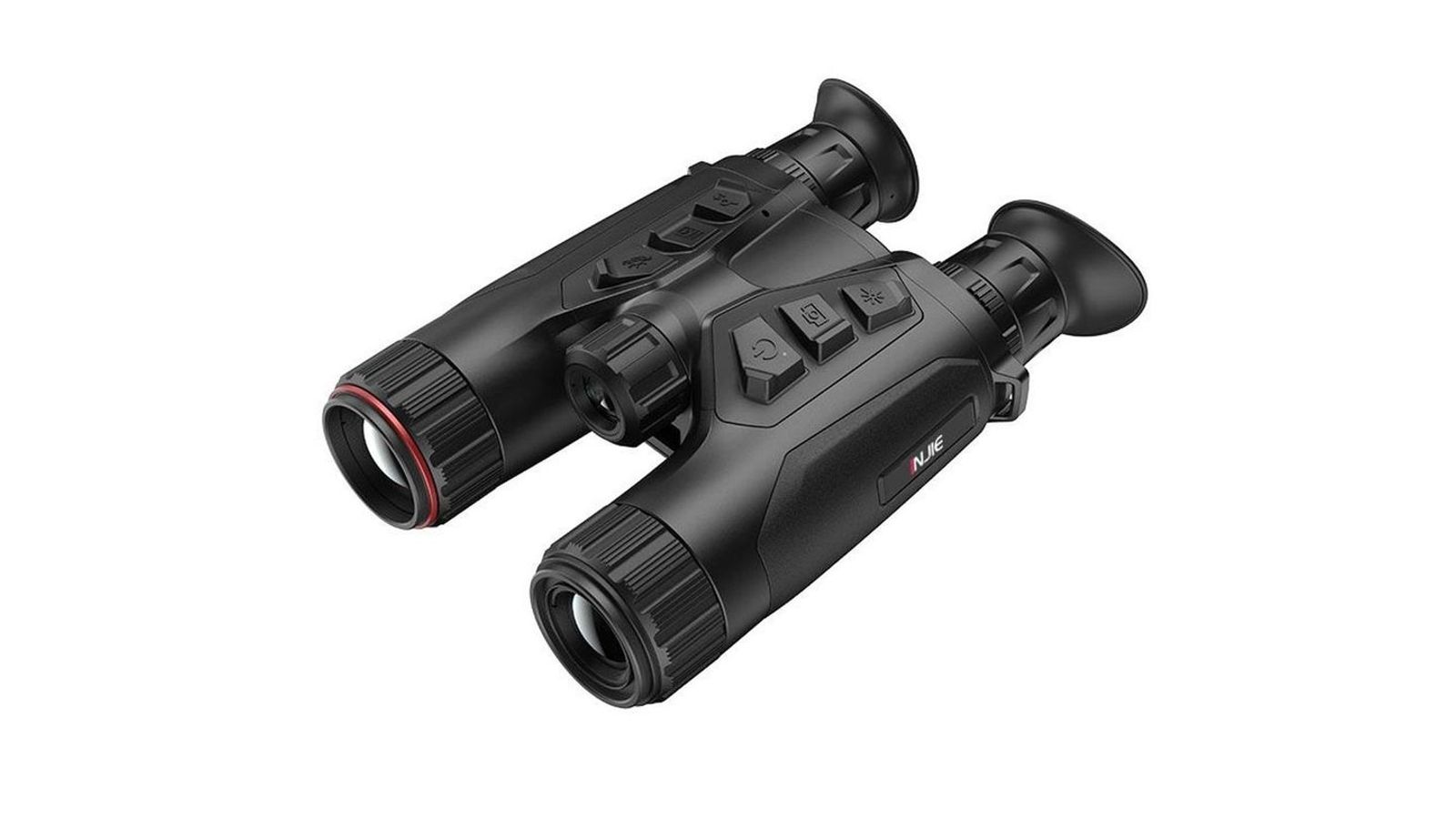

YJ-IR640R Integrated Thermal Imaging Night Vision Device with GPS Electronic Compass

The YJ-IR640R fused thermal imager is equipped with a 640 x 512@12μm thermal detector and a 2560 x 1440 optical detector. With a NETD of less than 20 mK (high thermal sensitivity), it ensures perfect image quality and exceptional detail recognition even under the harshest weather conditions. The 1000m laser rangefinder enables accurate distance measurement in low-light conditions. It is primarily used by special forces such as public security, armed police, and military units to achieve effective, all-weather surveillance of specific areas or targets, enabling rapid detection, identification, and tracking of objects of interest. It is also suitable for industries including firefighting, power, and petroleum, allowing day-and-night monitoring of particular areas or equipment.

I. Product Features:

(1) It combines the advantages of low-light visible light and thermal imaging, offering multiple observation modes to better meet the needs of different scenarios and personnel.

(2) The observed information is richer, details are more refined, scenes are easier to understand, and the effective detection and identification range is farther;

(3) The observed targets are more distinct, making it easier and faster to detect targets even against backgrounds with effective camouflage; the image fusion color night vision mode is particularly outstanding in this regard.

(4) The observed image is more natural and better matches human visual habits, significantly improving human eye’s target recognition performance and reducing eye fatigue.

(5) Meets all-weather operational requirements and can be used for observation in darkness, completely dark enclosed environments, and adverse weather conditions;

(6) High-sensitivity cooling module NETD < 20 mK (@25°C, F# = 1.0)

(7) 35mm, F1.0 lens, detection distance up to 1800m

(8) 2560 x 1440 high-resolution CMOS detector

(9) 1920 × 1080 resolution 0.49-inch OLED display

(10) Built-in 850nm infrared illuminator and laser rangefinder with a measurement range of 1000m

(11) Over 6 hours of continuous operation

(12) Lightweight, compact, and ergonomically designed at 780g

II. Parameters:
