Products Description
Product Introduction
Detect thermal energy to uncover subtle details

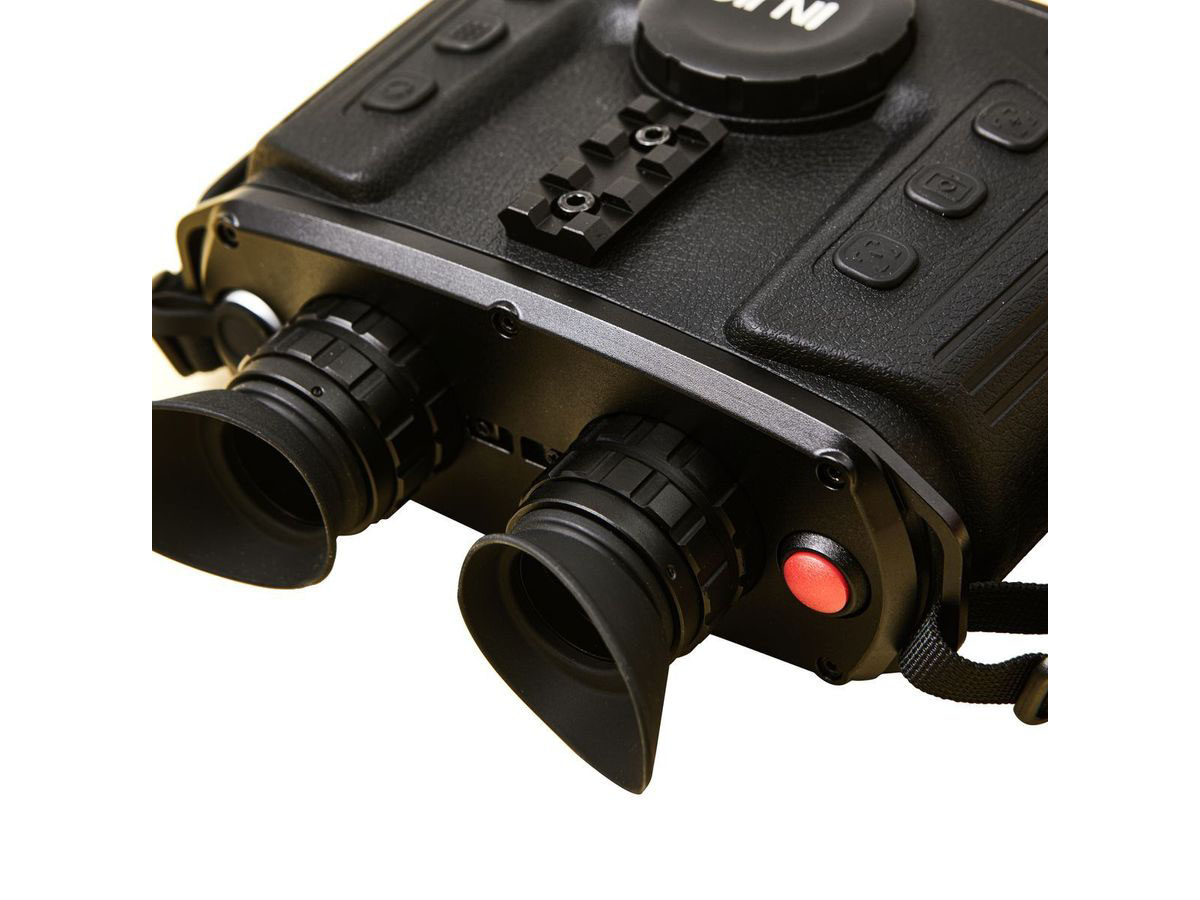

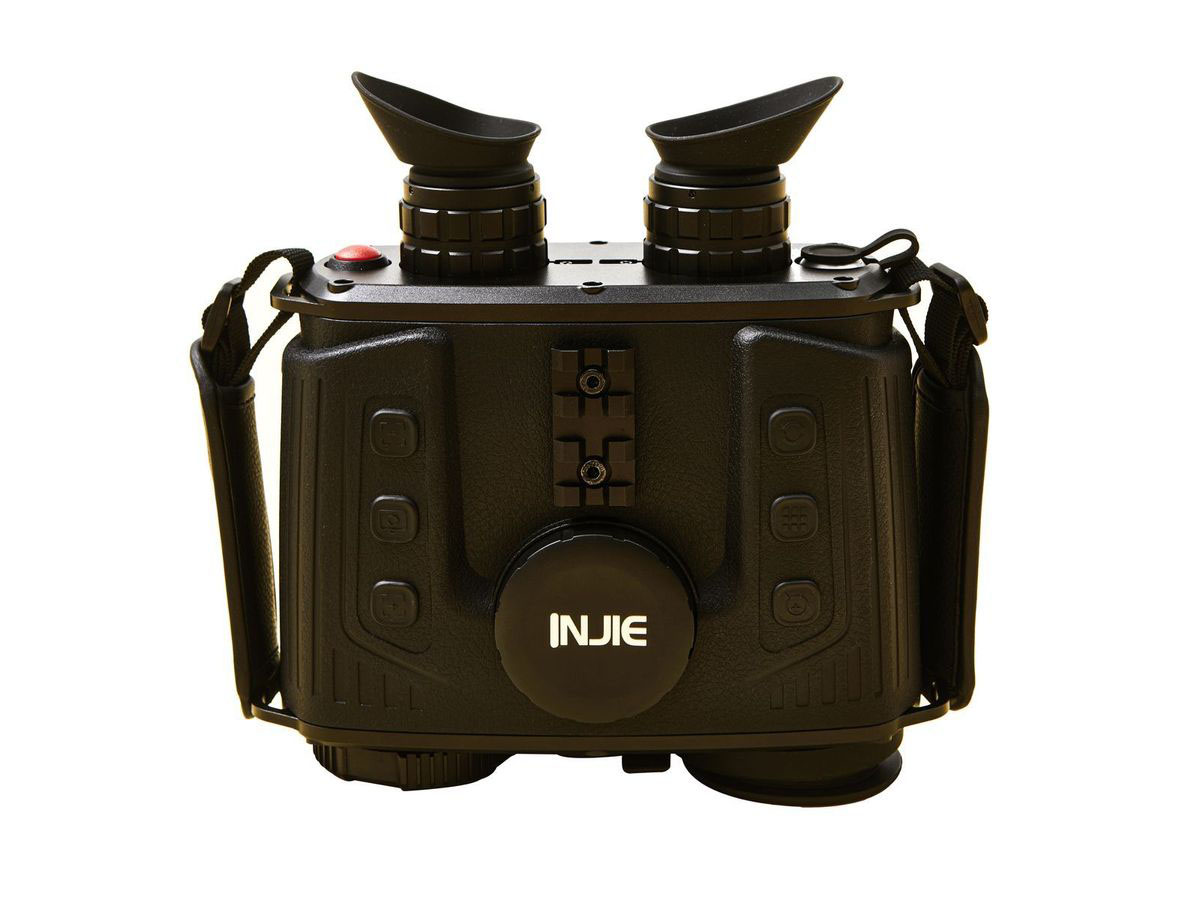

The YJ-IR3640C dual-light fusion thermal imaging surveillance device is a compact, intelligent observation tool that integrates infrared, low-light, and laser technologies. It features a built-in Beidou/GPS dual-positioning module, integrated WIFI, electronic compass azimuth measurement, laser rangefinding, and image storage capabilities. Equipped with image fusion functionality, it enables day-and-night observation and target search, allowing you to promptly take photos and videos and upload information. It’s comfortable to use and easy to carry.
This series of devices effectively meets the 24-hour, all-weather mobile day-and-night imaging needs, providing thermal imaging support around the clock with multiple color palettes to choose from and switchable display functions. They also feature excellent imaging performance in foggy conditions, with a maximum detection range of 8,000 meters both day and night. These devices have been successfully applied in security fields such as forest fire prevention, search and rescue operations, border defense for military units, maritime and water conservancy management, navigation channels, nature reserves, public security and armed police, airports, cultural relic protection, energy and mining, and other areas involving individual soldier, single-officer, or single-person patrols.
Application areas:
forest fire prevention, disaster relief, border control and inspection, fire and rescue, security patrols, long-distance surveillance, airport inspections, wildlife conservation, outdoor adventures, and more.
Technical specifications:
Model | YJ-IR640C | |
Detector Type | Amorphous Silicon Uncooled Infrared Focal Plane | |
Resolution | 640x384 | |
Pixel Size | 17μm | |
Field of View | 7.5°x5.6° | |
Operating Wavelength Range | 8~14um | |
NETD | ≤50mk@25°C. @f/1.0 | |
Focusing Range | 5m~~∞ | |
Display Mode | Infrared/Microlight/Dual-light Fusion/Picture-in-Picture | |
Frame Rate | ≤50Hz | |
Electronic Zoom | 1X, 2X, 4X | |
Lens Focal Length | 50mm | |
Color Palette | Black Heat, White Heat, Rainbow, Iron Red, Cool Color | |
Image Brightness/Contrast | Auto/Manual | |
Focusing Mode | Electric Focusing | |
Low-Light Parameters | ||
Sensor Specifications | Ultra-Low-Illumination CMOS | |
Sensor Resolution | 1920x1080 | |
Pixel Size | 4.0um | |
Lens Focal Length | 35mm | |
Frame Rate | ≤30Hz | |
Focusing Mode | Focus-Free | |
Image Display | ||
Display Specifications | OLED Microdisplay | |
Display Resolution | 1024x768 | |
Display Size | 0.39 inches | |
Display Mode | Infrared/Microlight/Dual-light Fusion/Picture-in-Picture | |
Color Palette | Black Heat, White Heat, Rainbow, Iron Red, Cool Color | |
Visual Adjustment | ±4sd | |
Other features | ||
Photo-taking feature | Yes | |
Video recording feature | Yes | |
Startup time | ≤10S | |
WIFI | 2.4G image transmission | |
Electronic compass | Directional bearing display | |
Positioning | GPS/BD | |
Image/Video Format | JPG/MP4 | |
Storage | ||
Capacity | 16G eMMC built-in (Note: The usable storage capacity may be less than this value, as system software occupies some space) | |
Ranging | ||
Ranging range | 9 meters - 2500 meters | |
Ranging accuracy | <400 meters, +1 meter: >400 meters, 0.4% | |
Detection distance | ||
Detection distance | Personnel (1.7m x 0.5m): 3333m Vehicle (4.5m x 2.3m): 8823m | Meteorological conditions: Humidity ≤60% Visibility greater than 20Km |
Recognition distance | Person (1.7m x 0.5m): 833m Vehicle (4.5m x 2.3m): 2205m | Meteorological conditions: Humidity ≤60% Visibility greater than 20Km |
Interface | ||
CVBS output | PAL video output | |
USB port | Export images and videos | |
External power supply | DC12/1A | |
Power supply | ||
Removable rechargeable lithium battery | 2000mAhx4 | |
Battery Model | 18650 | |
Battery charging method | Separate charging cradle | |
Total device power consumption | ≤6W | |
Battery life | ≥6 hours | |
Operating/storage environment | ||
Operating temperature | -25℃~+50℃ | |
Storage temperature | -30℃~+70℃ | |
Protection rating | IP54 | |
Dimensions/weight | ||
Dimensions | 193.1mm x 176.8mm x 99mm | |
Weight | 1.65KG (including battery) | |
