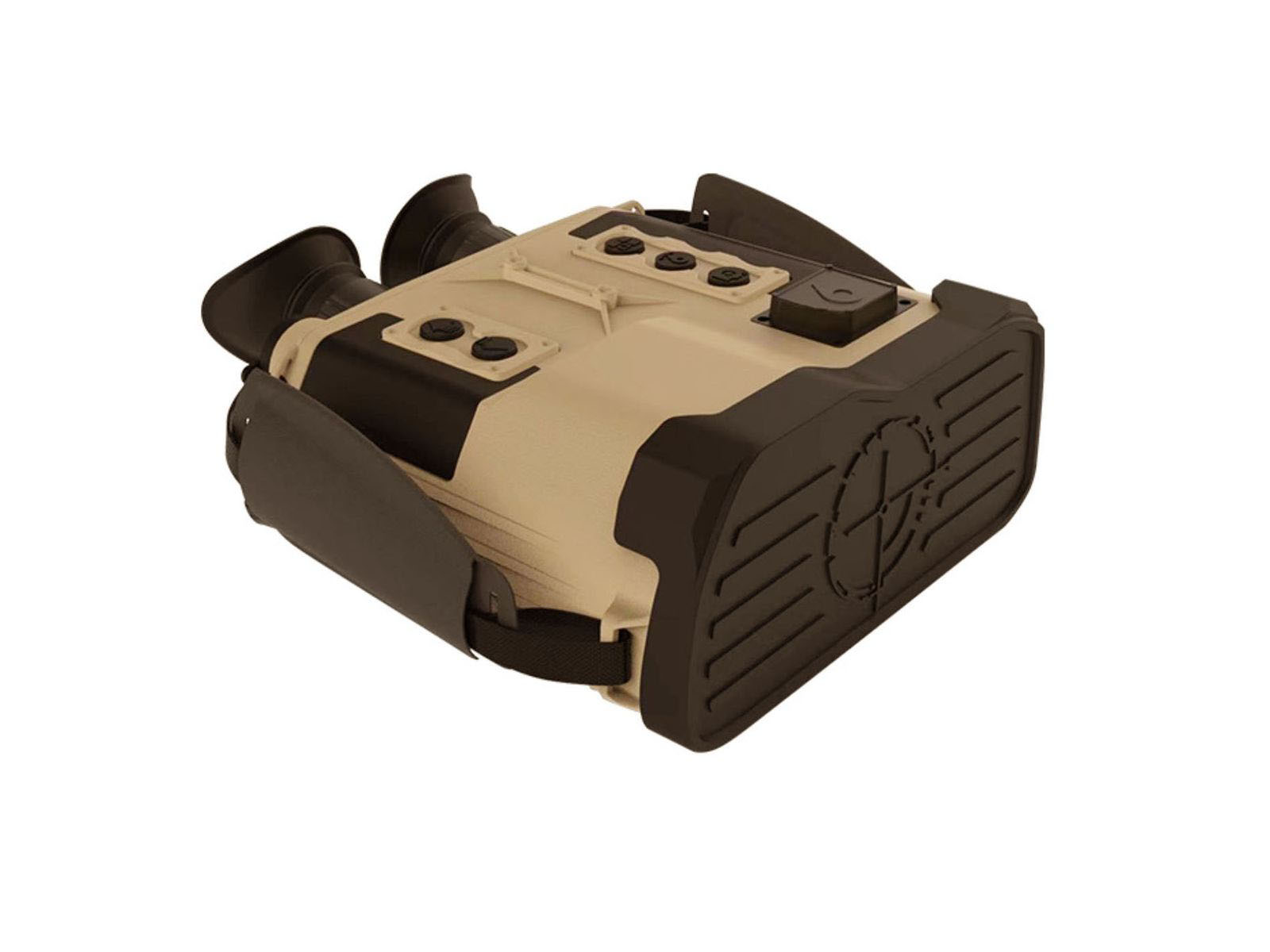

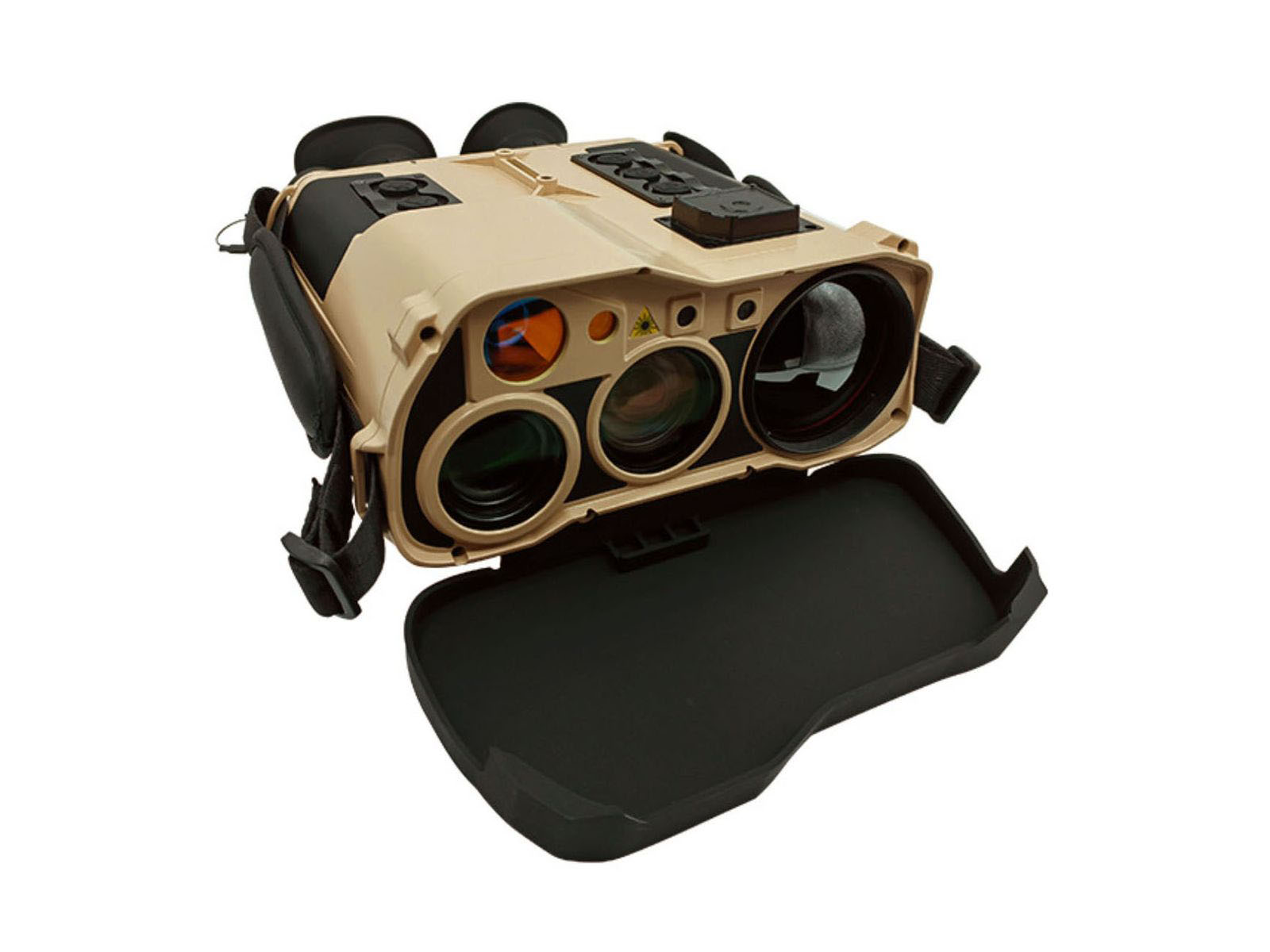

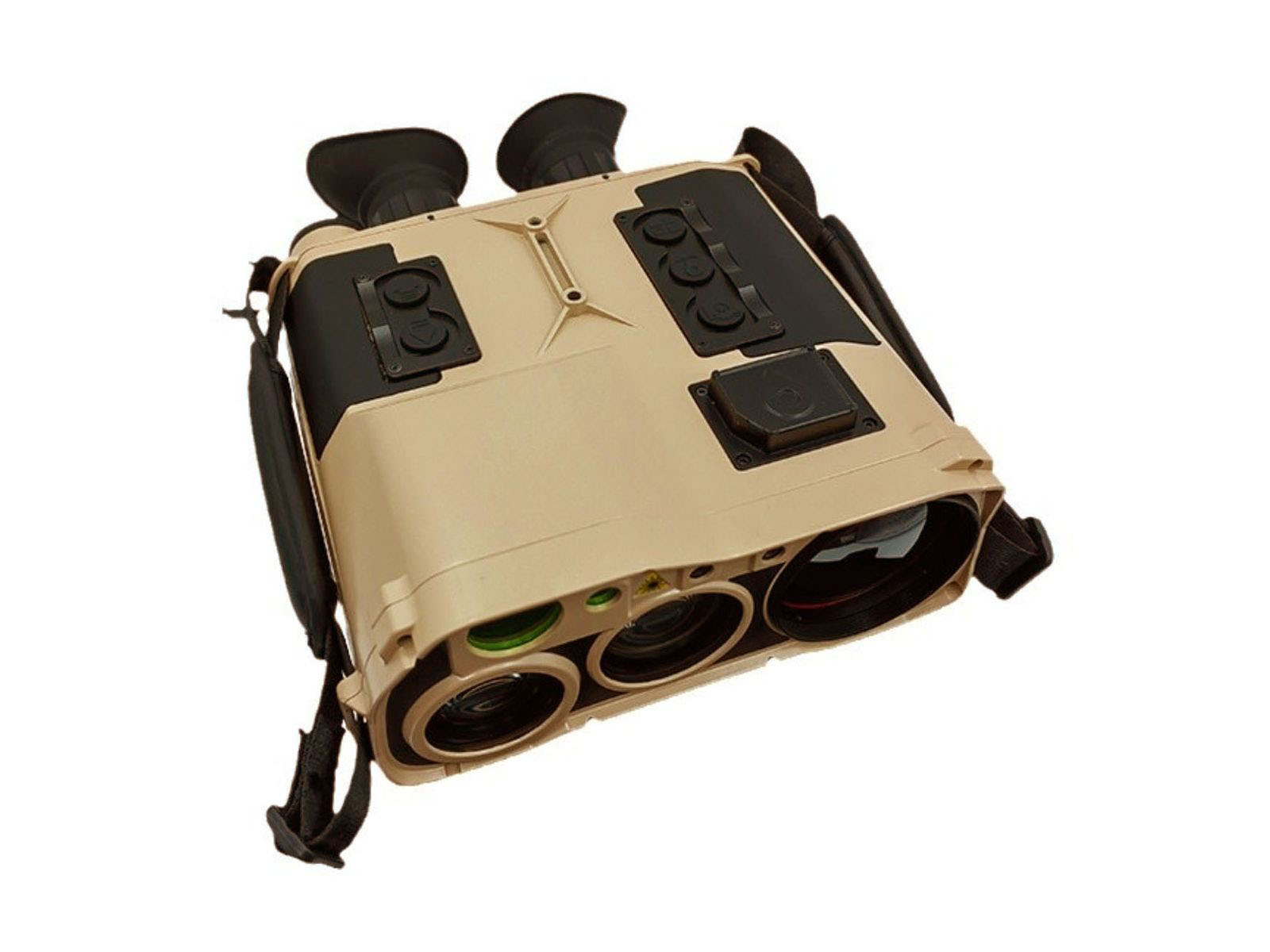

As a versatile reconnaissance asset, the Yingjie YJ-IR640V3 Five-Spectrum Fused Target Detection System is engineered for forward observation in nighttime or adverse weather conditions. It excels at identifying enemy activity and terrain features while assisting in evaluating shooting effectiveness. This all-in-one device integrates an infrared thermal imager, low-light camera, visible light camera, laser rangefinder, satellite positioning module, electronic compass, recording storage, and Wi-Fi transmission. It empowers individual soldiers to conduct long-range day/night reconnaissance, acquire their own geolocation coordinates, measure azimuth, range targets, and determine target coordinates. By enhancing situational awareness and securing operational initiative, it provides direct support for battlefield control.
Product Features
- Multifunctional定位: Capable of target positioning and accepting input coordinates to guide observation direction.
- All-Weather Imaging: Equipped with Infrared Thermal, Visible Light, and Low-Light imaging for 24/7 search, identification, and targeting.
- Fusion Mode: Merges Infrared and Low-Light images for enhanced clarity.
- Dual-Band Laser: Features 830nm/520nm laser indication for guidance and deterrence.
- Wireless Transmission: External Wi-Fi connectivity enables long-range image and data transmission.
- Media Management: Supports photo/video capture, playback, and USB export.
- Advanced Ranging: Laser ranging can be triggered externally via Wi-Fi or aviation connectors.
- Precision定位: Includes self-positioning, target positioning, and multi-target relative positioning.
- Target Guidance: Dedicated function for guiding users to specific points.
- HD Output: Supports onboard OLED display and external HDMI HD monitors.
Applications
Forest fire prevention, disaster relief, border patrol, fire rescue, security patrols, long-range surveillance, airport inspection, wildlife conservation, outdoor exploration, ballistic calculation, battlefield reconnaissance, target positioning, and terrain mapping.
Technical parameters:
Model | YJ-IR640V3 | |
Image mode | ||
Full-color visible light | √ | |
Thermal imaging | √ | |
Low-light | √ | |
Infrared low-light fusion (including enhancement, edge detection, and hybrid) | √ | |
Visible Light Parameters | ||
Detection Performance | Device Type | CMOS |
Resolution | 1920*1080 | |
Target Surface Size | 1/3.2 | |
Optical Performance | Wide Field of View | 44°*34°~2.4°*1.8° |
Operating Illuminance | ≥0.1Lx (black and white) ≥1.0Lx (full color) | |
Focusing Mode | Electric (Automatic/Manual) Focusing | |
Function | Day/Night Switching | Black-and-White/Color Switching |
Defogging | Defogging Ratio ≥ 2 | |
Effective Range | 8km detection of medium-sized vehicles (4.6m*2.3m) | |
4km detection of upright pedestrians (1.8m*0.5m) | ||
Thermal Imaging Parameters | ||
Detection Performance | Device Type | Uncooled Vanadium Oxide |
Resolution | 640*512 | |
Pixel Spacing | 12μm | |
Response Band | 8～14μm | |
Noise Equivalent Temperature Difference | 25mk | |
Optical Performance | Focal Length | 70mm f1.2 |
Field of View | 6.28°×5.03° | |
Effective Range | 4km detection of medium-sized vehicles (4.6m × 2.3m) | |
2km detection of upright pedestrians (1.8m × 0.5m) | ||
Low-light parameters | ||
Detection Performance | Device Type | CMOS |
Resolution | 800*600 | |
Pixel Spacing | 8μm | |
Sensitivity | 1×10-4 Lux | |
Optical Performance | Focal Length | 50mm f1.4 |
Field of View | 7.32°×5.5° | |
Laser Ranging Parameters | ||
Laser Wavelength | 1535nm | |
Measurement Range | 30m-6Km (Vehicle) | |
Positioning Component Parameters | ||
Positioning Mode | BDS Multi-frequency | |
Coordinate System | Geodetic coordinates/Gauss-Krüger coordinates/UTM Mercator/MGRS grid | |
Intelligent magnetic declination automatic correction parameters | ||
Automatically identifies the user’s current location | Magnetic declination for (specified location), no manual correction required | |
Electronic compass parameters | ||
Azimuth accuracy | 0.5° (RMS) | |
Pitch angle accuracy | 0.1° (RMS) | |
Laser indicator parameters | ||
Invisible laser | 850nm 50mw | |
Visible laser | 520nm 30mw | |
Display parameters | ||
Display Performance | Display type | OLED |
Display Resolution | 1920*1080 | |
Display Size | 0.71 inch | |
Exit Pupil Diameter | 8mm | |
Diopter Adjustment Range | -5～+5 | |
Reticle Performance | Reticle Types | 6 types |
Division Color | Black/White/Red/Blue | |
图像模式Image mode | Infrared Polarity | White-hot/Black-hot/Rainbow/Iron-red/Lava/Sky/Medium gray/Grey-red/Purple-orange/Ice-fire/Blue-red/Gradient red/Gradient green/Gradient blue |
Fusion polarity | Black-and-white fusion, desert fusion, jungle fusion, ocean fusion, urban fusion, snowfield fusion | |
Digital magnification | 1.0× to 8.0× zoom, step size 0.05× | |
Screen saver | Close-fitting anti-light-leak | Face moves away, screen automatically turns off |
8-in-1 precision target detection and positioning | ||
Self-positioning horizontal accuracy | ≤±10m | |
Target positioning accuracy | ≤±20m | |
Multimode projectile trajectory calculation | (Customizable and optional) | |
Measure meteorological parameters such as temperature, humidity, and atmospheric pressure | (Customizable and optional) | |
Includes 267 types of ballistic trajectories | (Customizable and optional) | |
Adjustable Windage | (Customizable and optional) | |
Quick and Comfortable Operation Parameters | ||
Interface Function Operation Guide | √ | |
Ergonomic Design | √ | |
Lightweight Parameters | ||
Volume | 235mm*220mm*110mm | |
Lightweight | 2.3kg (with battery) | |
Environmental Adaptability Parameters | ||
Non-cooled, Fast Startup | ≤30s | |
Operating Temperature Range | -40℃ to +60℃ | |
Protection Rating | IP67 | |
Storage Temperature | -45℃～70℃ (0℃～40℃ is optimal) | |
External Interface Technical Parameters | ||
Multi-function data cable interface | Ranging Button | |
Simulated Video Interface | CVBS (PAL Format) | |
Data Export Interface | USB | |
External power supply interface | 12V (±3V) | |
High-definition video interface | HDMI | |
External control command interface | RS232 | |
Wi-Fi interface | Image Transmission and Control Host | |
Continuous Operation Time Parameters | ||
Continuous Operating Duration | Operating Duration | ≥10 hours (18650*6, @25℃) |
Battery Installation Method | Flexible Installation | |
External Power Supply | ≥24 hours | |
