Products Description
Darkness is no obstacle—precise targeting at any time! The Yingjie YJ-IRG4 thermal imaging scope enables you to clearly identify targets in complete darkness or harsh environments.
Equipped with advanced infrared thermal imaging technology, it effortlessly penetrates smoke and fog without interference from light, ensuring reliable performance around the clock. With precise ranging capabilities and rapid target identification, it leaves no opportunity for targets to evade detection. Its lightweight design and user-friendly operation make it the ultimate tool for nighttime hunting and tactical operations. Master the art of surveillance at night.
At night, victory can be achieved from a distance of thousands of miles!

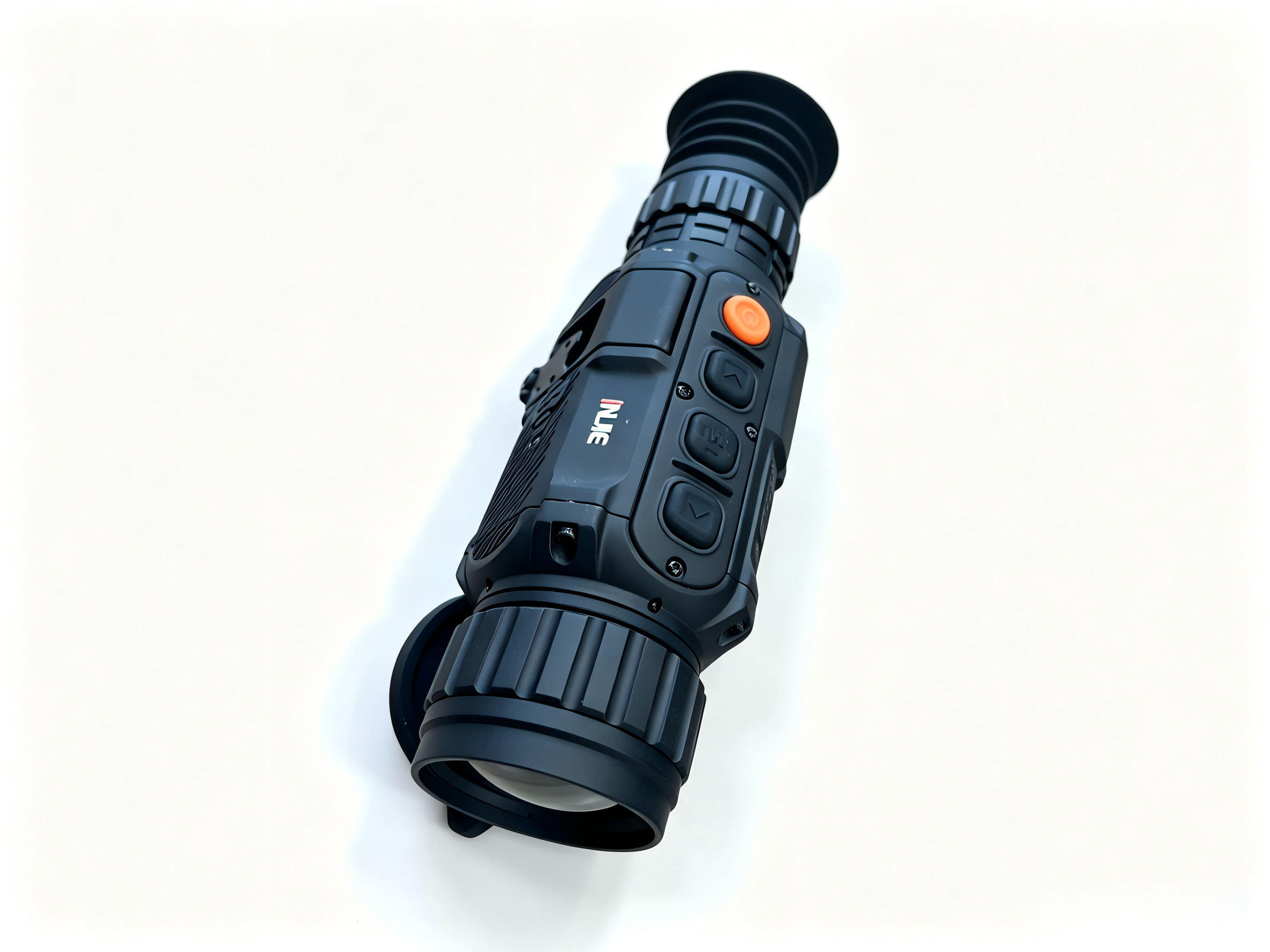

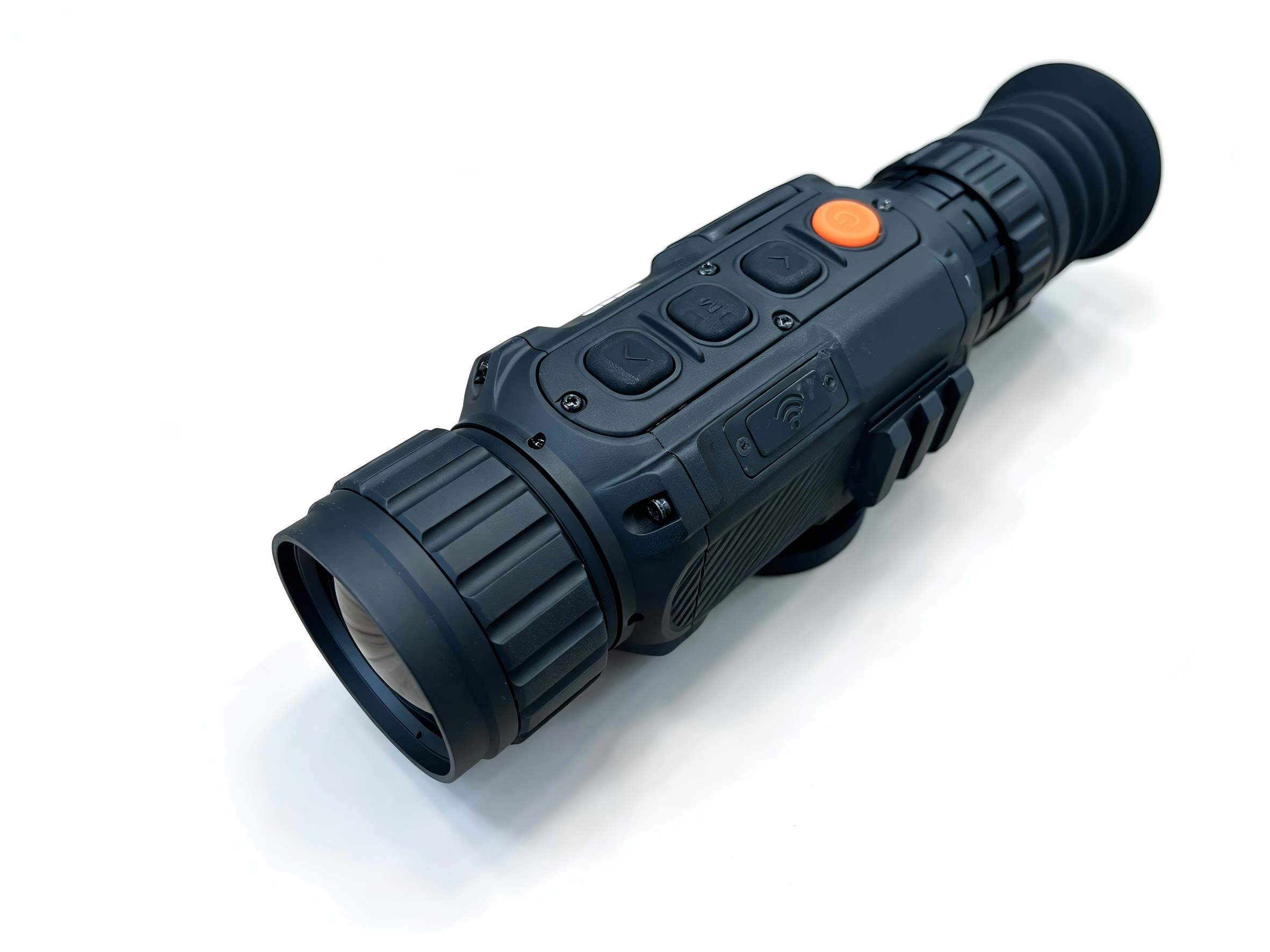

The Mingjie YJ-IRG4 multi-functional thermal imager is a high-performance infrared observation device featuring a highly sensitive vanadium oxide uncooled infrared detector and a full-color OLED display with 1024×768 HD resolution. Equipped with a mirrorless technology, it delivers smooth, uninterrupted image acquisition for long-distance monitoring across various scenarios.
Technical Parameters
Parameter Category | Detailed Parameters |
prober | Non-cooling vanadium oxide micro-radiometric radiometer |
resolution ratio | 384×288/12µm |
Lens Focal Length | 35mm |
Parameter Category | Detailed Parameters |
angle of field | 7.5°×5.7° |
Visual Magnification | 3.37~13.48 |
Working Band | 8~14 µm |
frame frequency | 50Hz |
NETD | ≤50mk@300K |
show | 0.39" OLED 1024x768 |
Objective lens clarity | -5~+5 |
Outward gaze distance | 45mm |
source | Section 2: CR123A Lithium-Ion Batteries |
weight | 500g |
duration of flight | ≥2.5h |
size | 208 × 57 × 58 mm (including the eyepiece/objective lens cover) |
Interface | External Power Source/Type-C |
working temperature | -30℃~ +50℃ |
levels of protection | IP67 |
reliability | Impact 8009 |
above sea level | ≥5000m |
